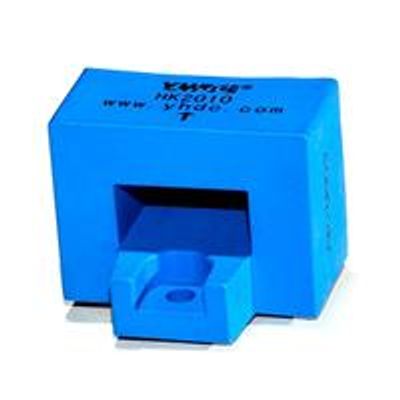

PowerUC - Model HK(S)2010 -Hall Open Loop Current Sensor
The HKS2010 product family is composed of open loop hall effect current sensors used for the current measurement of the DC, AC, and pulse with galvanic separation between the primary circuit and the secondary circuit. They benefit from instantaneous voltage output of ±4V and 2.5±0.625V, bipolar power supply of ±15 V and Single supply +5V, bandwidth of DC 50 kHz. HKS2010 current sensors are to be mounted on panels.
Most popular related searches
Introduce
- Open loop current sensor using the Hall effect measuring principle
- Insulating plastic case recognized according to UL 94-V0
Features
- Easy installation
- Low power consumption
- Small size and space saving
- Only one design for wide current ratings range
- High immunity to external interference
Applications
- AC variable speed drives and servo motor drives
- Static converters for DC motor drives
- Battery supplied applications
- Uninterruptible Power Supplies (UPS)
- Switched Mode Power Supplies (SMPS)
- Power supplies for welding applications
- Core Type : Solid-Core
- Input Type : AC, DC
- Output Type : Instantaneous
- Rated Input Current (RMS) : 50A-600A
- Rated Output : 2.5±0.625V
- Accuracy : 1%
- Power Supply Voltage : 5V
- Connection Type : Quick plug
- Mounting Type : Plate
