Model HLS-1000 -Halogen Tungsten Light Source

SHARE

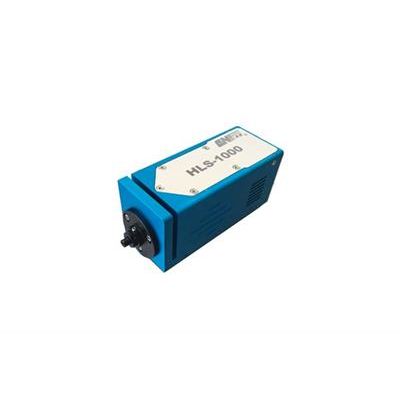

HLS-1000 halogen tungsten light source is a versatile light source, suitable for VIS-NIR (340 nm-2000 nm), can be used for sample detection in absorbance transmittance. The light source can adjust SMA905 connector to achieve the best coupling efficiency connecting with fiber. The cooling fan cools and stabilizes the light source. Filter can be embedded in groove at light exit port.

Most popular related searches
  • Spectrum Range: 340 nm ~ 2000 nm
  • Dimensions (mm): 153.70×63.5×55
  • Weight: 0.63 kg
  • Energy Consumption: ~8 W
  • Power Supply Requirements: 12 V DC 4A stabilized voltage supply
  • Color Temperature: 2800K
  • Lifetime of Bulb: ~2,000 hour
  • Rated Power of Bulb: 5 W
  • Connector: SMA 905
  • Output Power: 6.0 mW
  • Warm up Time: 10 minutes
  • Working Temperature: 5-35°C
