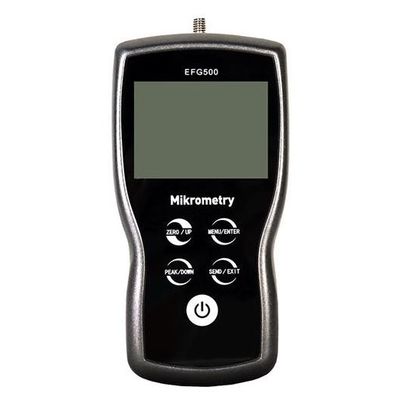

Mikrometry - Model EFG -Handheld Digital Compression Force Gauge

SHARE

The digital handheld compression force measurement tool is a small, simple, multi-function, and high-precision push and pull test measurement instrument, which is widely used in electronic appliances, construction hardware, fire equipment, power machinery, scientific research institutions, and other industries. Like the digital force gauge push pull tester, the digital handheld compression force gauge for springs has a high resolution, fast sampling speed, and is easy to read. And this compression force gauge or sensor is a new high-precision push-pull test instrument.

Most popular related searches
force gauge
compression testing
digital compression testing
scientific research
sensor data
temperature meter

As one type of handy force gauge, the handheld digital compression force tester has an advanced microprocessor, which can timely access the changes of built-in sensor data, continuous correction of the zero point, linearity, and temperature drift of the meter, to ensure the high accuracy of the compression force tester over a long period of time. The digital handheld compression force gauge meter made by our testing and measuring instruments companies has a compact and reasonable instrument structure, and the digital display is intuitive and clear. The withdrawable external battery can be replaced at will in imported cases.

  • Compression Force Meter has a durable metal case
  • Compression Force Gauges have the automatic reversible display
  • Handheld Digital Force Gauge equip Touch key for minimized disturbance
  • Compression Force Gauges take mechanical overload protection
  • Handheld Force Gauge adopts curve or digital display modes
  • Compression Force Tester has a calibration certificate
  • Compression Force Gauges use the charger with US/EUR/UK Plugs selectable
  • USB or RS232 communication interface, easy to communicate with PLC
  • Accuracy : ± 0.2% F.S.
  • Selectable Units : N?mN?gf? kgf? ozf and lbf
  • Display : 160*128 dot matrix LCD(2.8 inch) with LED Backlight
  • Overload Capacity : 150% of F.S. (LCD blinks beyond 110%)
  • Overload Protection : Overload Protection Mechanism to prevent to be damaged
  • Measurement Mode : Track?Peak? Auto-Peak?First Peak
  • Display Mode : Curve/digital
  • Data Sampling Rate : 2KHz
  • Display Update Rate : 10 times/second
  • Memory : 1000 data
  • Set Point : Programmable high and low limits
  • Battery Indicator : The display flashes the battery icon when the battery is low
  • Power : 3.6VDC 800mAH Ni-Mh rechargeable batteries
  • Battery Life : Approx. 14 hours per charge
  • Charger / Adaptor : Universal USB/BM charger, Input:110~240VAC
  • Temperature Effects : <0.03% FS per °C
  • Communication : USB or RS-232
  • Software : Free software for USB communication
  • Outputs : RS-232, "Within" set point output, "Under or over" set point output
  • Operating environment :
  • Temperature: -10 to 40°C
  • Relative Humidity:  20 to 80%
  • Storage environment :
  • Temperature:  -20 to +50°C
  • Relative Humidity:  5 to 90%
  • Dimensions : 160*73*34mm
  • Weight : 0.7 kg (1.5 lb)
  • Accessories : AC adapter/charger, USB cable, 6 attachments: hook, flat tip, conical tip, chisel tip, notched tip, extension shaft
  • Options : Mini-printer, Measuring Adapters, EST-FG1M1 Test Stand, EST-FG2V Motorised Test Stand, EST-FG2H Motorised Test Stand, Ergonomics measuring Kit.
