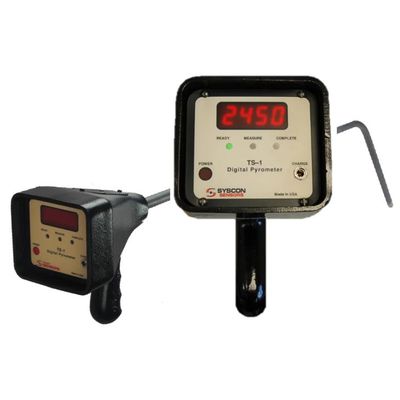

SYSCON Sensors - Model TS-1 -Handheld Digital Pyrometer

FromSYSCON SENSORS, Division of SYSCON International, Inc.

SHARE

SYSCON Sensors TS-1 is a handheld, accurate, easy-to-use, and reliable pyrometer, making it the ideal molten metal temperature measuring instrument for Foundries and Steel Mills. It can be used with molten Steel, Bronze, Cast Iron, Aluminum Alloys, Copper, Gold, Brass, and Silver. The TS-1 is ideally suited for SYSCON’s thermocouple tips, available in a variety of styles and options. Thermocouple tips are sold separately, so be sure to order what you need.

Most popular related searches

temperature monitoring system

temperature monitoring

mechanical switch

thermocouple calibrator

calibration standard

digital pyrometer

type k thermocouple

metal thickness monitoring

Ideal for Foundries and Steel Mills
Compatible with all standard thermocouple tips
High overall instrument accuracy of ± 3°F (± 2°C)
Rechargeable battery; ~ 200 readings per charge
Bright 0.5” (12 mm) LED display
Automatic power shut-off after 90 seconds
Rugged, dust-proof, NEMA panel
Smart charging circuit with overload protection
Low power consumption
No mechanical switches
One-touch to turn on, recall last temperature, or start new measurement

Input : 1 Thermocouple Input
Thermocouple Type : S, K, R, B
Thermocouple Calibration Standard : IPTS 48 or IPTS 68
Operating Mode : Peak Detection or Continuous
Instrument Accuracy : ±3°F from 400°F - 3300°F (±2°C from 205°C - 1815°C)
Recommended Temperature Ranges :

Type S,R: 400°F - 3182°F (205°C - 1750°C)
Type K: 400°F - 2462°F (205°C - 1350°C)
Type B: 400°F - 3308°F (205°C - 1820°C)

Battery :

Four 1.2 V 600 mAh
AA NiCad (Nickel Cadmium)

Battery Charger :

100 - 240 V 60 Hz AC Input
12 V 1 A DC Output

Charging Time : 90 minutes (0-100% charge)
Housing : NEMA rated dust proof panel
Weight : 4.5 lb (2.5 kg)
