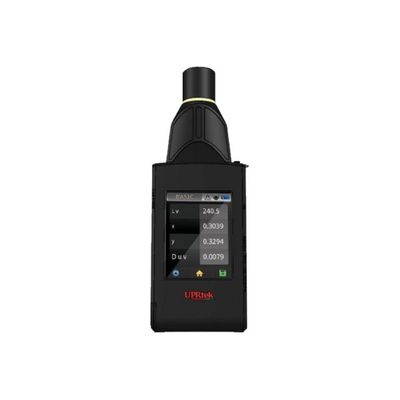

UPRtek - Model MK550T -Handheld Spectroradiometer
Companies that manufacture, buy and sell display panels face a similar problem. And that is the need for efficiently measuring Display Panel performance in various situations, like on production lines, R&D test labs, FAE offsite locations.
The choices are few. Use a Colorimeter that is portable but inaccurate or you can use laboratory-level equipment, which is accurate but slow, bulky and expensive.
With the MK550T handheld spectroradiometer, anyone has access to cost-effective, lab-level instrumentation that can measure more than10x faster than other precision instrumentation.
The MK550T is used in manufacturing R&D development. It is used on production lines interfacing with manufacturing production equipment. It is used by Field Application Engineers for remote site OEM/ODM work.
MK550T – Boost versatility & flexibility in measurement capabilities through portable, fast performance.
- Laboratory-Level precision – Diffraction Grating and proprietary technologies
- Different receptor sizes (for small size displays – e.g. watches)
- SDK allows manufacturers to integrate with their own RD efforts
- Supports several 3rd party tuning tools
- JEITA, Contrast, VESA, RMS, FFT Flicker metrics
- Handheld versatility and can also mount on a stand, cable connect to PC for hands free operations.
Spectrum
- Sensor : CMOS Linear Image Sensor
- Wavelength Range : 380 to 780 nm
- Wavelength Data Increment : 1 nm
- Spectral Bandwidth : Approximately 9 nm (Half Bandwidth)
Flicker Measurement
- Measuring Capabilities (Flicker) :
- Max/Min,Average,RMS and Frequency
- JEITA (dB & %)
- VESA (dB & %)
- Light waveform (Time Domain Light Wave & Frequency Domain Light Wave)
Key Measurement Information
- Luminance Measuring Range : 0.001 ~ 5,000 cd/m²
- Luminance Accuracy : ± 2% @ 100~5,000 cd/m²
- Color(x/y) Accuracy : ± 0.002 @ 100~5,000 cd/m²
