Hard-Coat Insulation

Applications

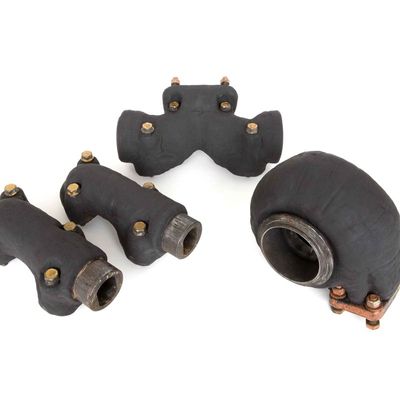

• Elbows
• Exhaust Manifolds
• Exhaust Tubing.
• Turbochargers

Industries

• Aerospace
• Defense
• Marine
• Mining

Advantages

• Conforms tightly to part
• Can be used in limited space applications
• Prevents fluids from igniting on hot engine and exhaust parts
• High temperature performance: Ideal for engine compartment components requiring long-term exposure to high temperatures.
• Non flammable
• Protects personnel from burns
• Lowers ambient temperature - cooler engine compartment, less heat stress on operators and maintenance personnel
• More durable and long lasting than removable insulation blankets - not prone to tearing, does not become brittle over time.

Based on independent field testing. Exhaust temperature 1072º F (578º C). CAT C6.6 Engine

Part: Measured Temperature

Turbo Flange (Casting) - Uncovered: 600º F (315º C)

Turbo Insulated With Firwin HC: 120º F (48º C) to 250º F (121º C)

Manifold Insulated With Firwin HC: 135º F [57º C) to 250º F (121º C)
