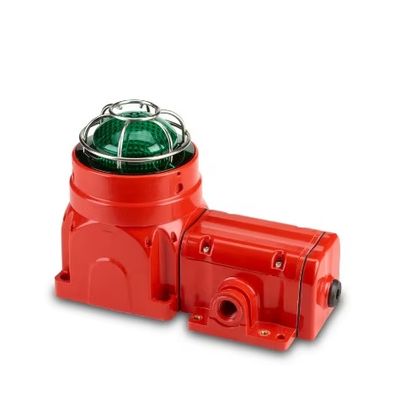

Federal Signal G-LED Global Series - Model G-LED-DC-E-G-R -Hazardous Location LED

• Available in 24 Vdc and 120-240 Vac 50/60 Hz
• Optional stainless steel ratchet-adjustable mounting U-bracket (field installation required)
• GRP (Glass Reinforced Polyester)
• Non-metallic corrosion-resistant design, available in Red or Black
• Two lens options: low- or high-profile
• Dome guard included
• 24 Vdc models contain a supervisory diode and four-wire terminal block
• M20 entries standard
• LED has (8) on-board flash patterns, factory default is flashing at 60 FPM
• 316SS guard and external fasteners
• “Auto-sync” available for AC flashing pattern products
• Optional indicator rings are available in six colors: Black, Blue, Green, Magenta, Red, and Yellow• Field-customizable legend plates available
• Type 4X, IP66 enclosure, IP67
• IP69K compliant
• Zone 1, 21 Rated, IECEx, ATEX, Ex d IIC, Ex de IIC and Ex tb IIIC
• UL and cUL Listed for Class I, Division 2, Groups A, B, C and D; Class II, Division 2, Groups F and G; Class III
• UL and cUL Listed for Class 1, Zone 1; Zone 21
• UKEX certified

Federal Signal’s patented Global Series® LED Beacons feature long-life LEDs with the ability to select one of (8) flash patterns(user-configurable) and offer two lens options (low- or high-profile). The device is rated to the latest protection concept, “Ex op is” (inherently safe optical radiation). The housing is made from GRP (Glass Reinforced Polyester), designed to serve the demanding needs of offshore marine and land-based industrial applications.

The Global Series LED Beacons flameproof “Ex d” versions come standard with (2) M20 entries. The increased safety “Ex de” versions include separate terminal chambers for quick field termination or pass-through wiring and include (3) M20 entries in a standard configuration.

These units can be combined with other Global Series products to create factory-direct custom configurations, or optional coupling kits are available for limited field fixturing. The Global Series LED Beacon is ideal for use in alarm control panel applications.

• ATEX/IECEx Certification Marking: ATEX: Baseefa15ATEX0153X,Ex tb IIIC Db IP66. T6 @ 58ºC; T5 @ 70ºC,IECEx: IECEx BAS 15.0102X,II 2GD Ex db e op is IIC Gb,II 2GD Ex de IIC Gb
• Cable Entries: Ex d: 2 entries - M20 x 1.5, Ex de: 3 entries - M20 x 1.5
• Enclosure Rating: Type 4A, IP66, IP67, IP69K
• Environmental Rating: Hazardous Location
• Guard & External Fasteners: 316 stainless steel
• Lamp Life Hours: 50000
• Light Source: LED
• Terminals: Ex d: 6 way block (3 in, 3 out), Ex de: 3-pole, 4 position quad pole terminal blocks
• UL/cUL Certification Marking: B,C,Class I,Class II,Class III T6 @ 70°C,D T4 @ 70°C,Division 2,G T6 @ 70°C,Groups A,Groups F,UL and cUL E207119
• Warranty: Five-year
