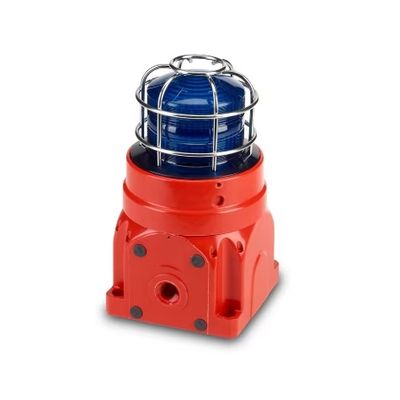

Federal Signal G-STR Global Series - Model G-STR-024-D-B-R -Hazardous Location Strobe
Global Series Strobe Light, Hazardous Location, UL and cUL CID2, Zone Listed, 24VDC, Ex d Surface Mount, 21J, Blue, Red enclosure.
- Available in 24 Vdc, 120 Vac, and 220-240 Vac 50/60 Hz
- Optional stainless steel ratchet-adjustable mounting U-bracket (field installation required)
- Non-metallic corrosion-resistant design, available in Red or Black
- 24 Vdc models contain a supervisory diode and four-wire terminal block
- For use in alarm control panel applications
- Dome guard included
- M20 entries standard
- Optional indicator rings are available in six colors: Black, Blue, Green, Magenta, Red and Yellow
- 316SS Guard and External Fasteners
- Field customizable legend plates available
- Type 4X, IP66 enclosure, IP67
- IP69K compliant
- Marine Rated
- Zone 1, 21 Rated, IECEx, ATEX, Ex d IIC, Ex de IIC and Ex tb IIIC
- UL and cUL Listed for Class I, Division 2, Groups A, B, C and D; Class II, Division 2, Groups F and G; Class III
- UL and cUL Listed for Class 1, Zone 1; Zone 21
- UL Fire Listed (24 Vdc, Clear 21 J Strobe)
- UKEX certified
Federal Signal’s patented Global Series® 15-joule and 21-joule strobes feature high-intensity xenon strobe tubes. The housing is made from non-metallic materials designed to serve the demanding needs of offshore marine and land-based industrial applications and can dramatically reduce the cost of long-term maintenance.
The flameproof “Ex d” versions come standard with (2) M20entries. The increased safety “Ex de” versions include a separate terminal chamber for quick field termination or pass-through wiring and include (3) M20entries in a standard configuration.
The Global Series Strobe can be combined with all other Global Series audible and visual products in several custom configurations. Custom configurations can be ordered directly from the factory. Optional coupling kits, which allow limited field fixturing, are available. Patent No.9,886,832 B2
- ATEX/IECEx Certification Marking: ATEx: Baseefa15ATEX0154X,Ex tb IIIC Db IP66. T3 @ 70ºC,IECEx: IECEx BAS 15.0103X,II 2GD Ex d IIC Gb,II 2GD Ex de IIC Gb
- Cable Entries: Ex d: 2 entries - M20 x 1.5, Ex de: 2x3 position quad pole terminal block, Ex de: 3 entries - M20 x 1.5
- Enclosure Rating: Type 4A, IP66, IP67, IP69K
- Environmental Rating: Hazardous Location
- Guard & External Fasteners: 316 stainless steel
- Lamp Life Hours: 10000
- Light Source: Strobe
- Operating Current (Amps): 0.83 @24VDC / 0.33 @120VAC / 0.19 @220-240VAC
- Terminals: Ex d: 6 way block (3 in, 3 out)
- UL/cUL Certification Marking: B,C,Class I,Class II,Class III T4A @ 70°C,D T3 @ 70°C,Division 2,G T4A @ 70°C,Groups A,Groups F,UL and cUL E207119
- Warranty: Five-year
