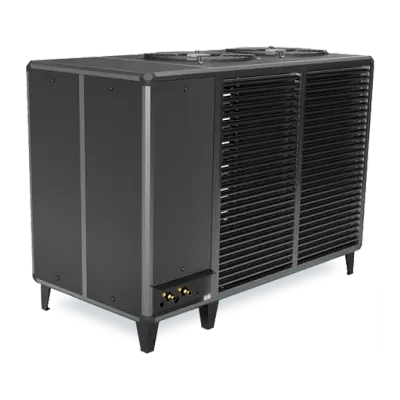

Model Box Air 60/90 Inverter P -Heat Pump

All-in-one unit
Easy installation, no need of any indoor unit. Makes promp return of investment even faster.

Highest power
BoxAir 90 IP offers output up to 50 kW which makes it the most powerful air-to-water unit in Master Therm range. (BoxAir 60 IP with 35 kW.)

Ready for cascades
Integrated MasterLAN software: up to 16 units can be easily set up and connected to control power cascades of hundreds of kW.

• Unrivaled price/performance ratio for commercial and industrial applications (office buildings, factories, warehouses, schools, hotels, sport facilities etc.)
• All-in-one unit – easy installation, no need of any indoor unit
• Integrated MasterLAN software – up to 16 units can be set up and connected to control power cascades of hundreds of kW

• 24/7 remote service monitoring and diagnostics
• Absolute reliability thanks to our 20+ years of commercial & industrial experience
• Extensive intelligent optional equipment: internet connection (monitoring and logging), modbus/BMS, integrated MID electric/heat meter, communication with PV Inverter and Batteries, smart grid etc.
• Active cooling mode (optional equipment)

• Built-in heating side circulation pump
• Minimized noise due to ultra-quiet fans with smooth speed control

• Max heating water temperature 75 °C
• Anti-legionella function from compressor only
• Outdoor temperature range from -20 °C to +40 °C
• Back-up heater 15 + 15 kW as standard

Unique Master Therm software for heat pump control

• Unique Master Therm software for heat pump control
• Equithermal MaR (measurement and regulation)
• Advanced temperature feedback control in the building based on internal room temperature sensors
• Control via touchscreen terminal or online application
• Includes remote service monitoring and diagnostics
• Control of up to 6 heating circuits including the possibility of connecting a swimming pool or solar panel
