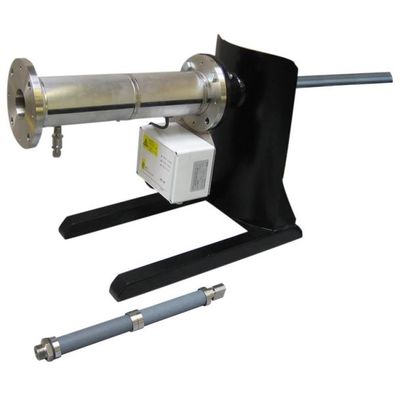

JCT - Model JHPF -Heated Adapter Pipe
Applications: For extractive gas analysis. For emission and process monitoring. Process external heating of pre-filters for applications with high dust concentrations combined with high process temperatures (above maximum temperature of pre-filter). Combinable with gas sampling probes JES-301 and JES-301L.
Most popular related searches
gas sampling probe
gas sampling
sampling probe
stainless steel pipe
sample gas probe
sample gas
gas probe
process monitoring
digital temperature controller
flanged pipe
- Sampling without influence on the sample gas
- No corrosion due to condensate formation
- Uniform reliable heating of the pre-filters independant of the operating conditions
- Cleaning via back purge connection
- Easy mounting
- Safe operation
- Corrosion resistant stainless steel pipe
- Fully electronic temperature controller with low temperature alarm and excess temperature switch-off
- Error message for sensor short-circuit and broken sensor
- Mounting directly at the standard process and gas sampling probe flange
- Pipe length 400 mm
- Temperature adjustment range 5°C....200°C, optionally 5°C...320°C
- Sampling pipes of arbitrary length can be screwed in on process side
- Back purge connection with check valve
