Envea - Model LCPD Box -Heated Sampling System
FromENVEA

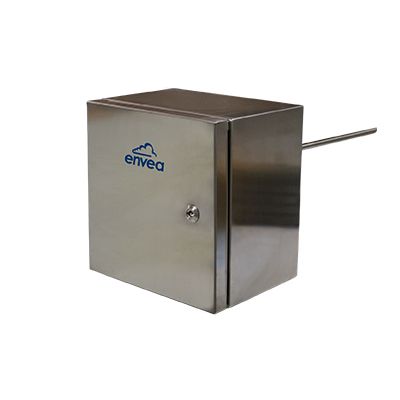

The LCPD BOX is a full extractive sampling probe assembly which extracts the sample gas through a probe & heated filter to remove particulates. To be used with heated analyzers, or with unheated analyzers such as MIR 9000, MIR 9000e, IR IS, by adding a cooling dryer
Most popular related searches
heated sampling system
heated sampling
sample heating
sampling probe
sample gas
gas sampling
temperature regulator
stainless steel tube
zero air
check valve
The LCPD BOX sampling system uses the Hot Wet Extractive (Wet Basis Analysis).
- Stainless steel probe tube with optional reusable primary filter
- Corrosion resistant enclosure
- Temperature regulated heated block, containing zero-air / span gas connection & heated line connectors
- Check valve eliminates dead volume
- Large volume, quick-pulse blow-back
- Heated filter prevents condensation
Hot Wet Extractive (Wet Basis Analysis)
The gas sample is extracted and transferred through heated sampling lines. It is heated above 180°C in order to avoid acid dew points for the analysis process. Upon arrival to the analyzer, the sample is hot and wet.
