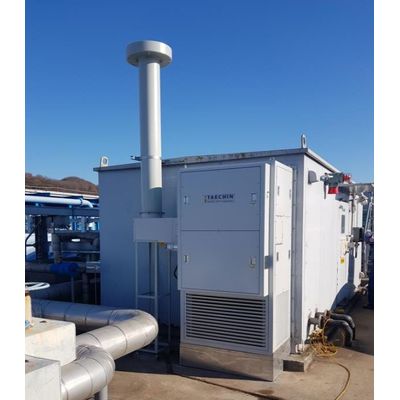

Model TC Series -Heating Ventilation Air-Conditioning System
IECEx, ATEX, KCs. Zone1 IIB+H2 T3 or T4. Suitable for hazardous area Zone1(Zone2) according to EN60079-10 standard.. Power 380~400Vac / 3Ph / 50,60Hz. Power 440~460Vac / 3Ph / 60Hz. Heating capacity_1~10kW. Ambient temperature: -20? to 50 ? or -20 ? to 55 ?. HVAC cabinet material_Galvanized steel. Evaporator fan (Full redundant_option). Condenser fan. HVAC control via PLC (Programmable Logic Controller). Refrigerant fluid_R407c or R134a. Aluminum finned copper tube coils. High/Low pressure switch for compressor. High pressure switch for condenser. Dual Low pressure switch for compressor low purge alarm. DP switch for shelter positive pressure (option). DP switch for evaporator fan fault. Dust filter in Evaporator inlet (Grade MERV8_only TC66,77). Dust filter in stack for fresh air (Grade MERV8). Humidity sensor for Dehumidification (option).
User friendly HMI
By adopting user friendly HMI(Human Machine Interface), easier maintenance with powerful function and convenient interface wasrealized.
Various and stable communication
Communication network can be easily built on any site through the VNC Serial (RS-485) and Ethernet communication, realizing remote control of the equipment.
Specialized design to ensure safety
TC series are designed in accordance to EN60079-0, 60079-1, 60079-2 and international standards which is suitable for safety area as well as for Zone2 or Zone1.
Full redundant system
A stable positive pressure inside a shelter is maintained by a full redundant fan system and the motor are protected programmatically through the 24-hour auto changeover system.
Customized design
The dimensions of some parts such as stack, cabinet and also the location of the control panel can be customized.
Real-time data logging
Data can be saved to its memory, SD card, USB memory in CSV file.
