Arbutus Medical DrillCover - HEX Drill Kit

Conventional orthopedic drills are expensive, and one drill is not enough as it takes time to clean and sterilize instruments between cases. Multiple DrillCovers allow a busy hospital to perform back-to-back surgeries with a single drill simply by replacing the battery with a fully charged one and loading the drill into a new sterile cover.

• Stanley Black & Decker drill converted into a licensed and registered surgical device.

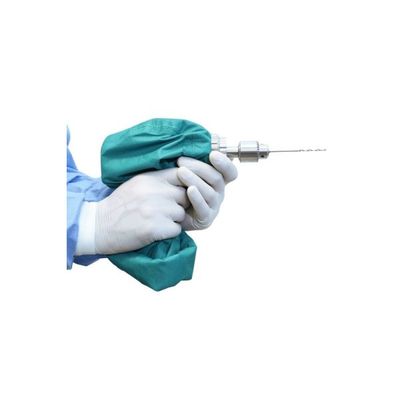

• Fully-sealed, robust, surgical drilling system featuring a sterile cover.
• Best suited for driving of short K-wires, Steinmann pins or external fixator pins.
• An optional AO quick-connect attachment can be added for quick exchange of AO type drill bits.

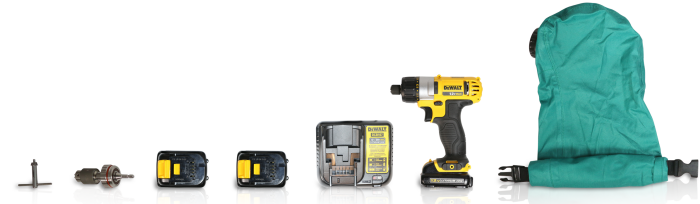

• 1 Modified DeWalt Drill
• 2 Rechargeable Lithium-Ion Battery
• 1 Battery Charger (plug types A, C and G available)
• 1 DrillCover Hex Linen*
• 1 3-Jaw Chuck Adapter 1 chuck key
• Optional: AO attachment (to use with half-moon shaped drill bits)

• Material: Waterproof textile and construction (including fully-taped seams); pathogen-barrier, Level IV textile
• Lifetime: 75 uses
• Sterilization: Steam autoclave only. Gravity displacement at 121° C for 30 minutes; Prevac autoclave at 132° C for 4 minutes or 134° C for 3 minutes.

• Chuck Type: Keyed
• Capacity: 0.5mm - 7.4mm (0.020in - 0.291 in)
• Material: Surgical-grade stainless steel

• Speed: Variable at 0 - 1050 RPM (rotations per minute)
• Battery: 2x 12V rechargeable Lithium-ion batteries
• Drill Stall Torque: 70 in-Ibs (8 N-m)
• Weight: 1 kg (2.2 Ibs)
• Charger Voltage & Plug Type: 120V or 240V; Plug types A,C or G
