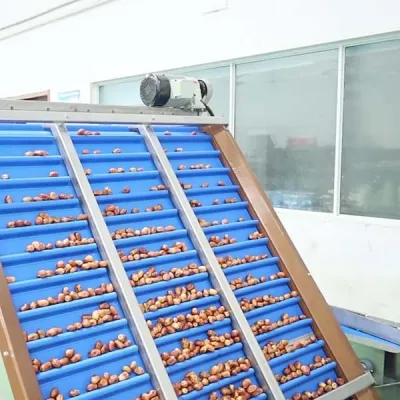

Jinguoyuan - Model LYZ01-0608A -High-Accuracy Palm Dates Sorting Machine

SHARE
The High-Accuracy Palm Dates Sorting Machine is designed to efficiently categorize dates by size with a high degree of accuracy, using advanced AI Deep Learning technology. This machine processes up to 2.0 tons per hour through six lanes, allowing for efficient classification of dates into large, medium, and small sizes. Every date is subjected to a comprehensive 360-degree rotational scan, capturing over eight images to ensure precise grading. Constructed from durable 304 stainless steel and designed to operate at a voltage of 380V±5%, the machine offers consistent performance and reliability. It is certified by CE, MD, and ISO9001, ensuring quality and compliance with industry standards. The machine not only significantly reduces labor efforts but also enhances the value for producers by ensuring consistent sorting quality. Additionally, the machine provides customizable discharge ports for diverse operational needs and optional internal detection for enhanced quality control.
Most popular related searches
sorting system

Lanes: 6

Output: 1.4-2.0 T/h

Voltage: 380V/50Hz

Air Pressure: >0.6 MPa

Weight: Project-based

Material: 304 SS + Carbon Steel

Powered: Electricity

Dimension: 14806x3328x2436mm

High-Accuracy Sorting 98% 6-Lane Palm Dates Sorting Machine with CE MD ISO9001 Certification

The Palm Dates Sorting Machine provides high accuracy in sorting dates by size, utilizing AI Deep Learning. Processing up to 2.0 tons per hour through its 6 lanes, it efficiently categorizes dates into large, medium, and small sizes. Each date is subjected to a full 360° rotational scan with over 8 images taken for precise grading. Made from high-quality 304 stainless steel and operating at 380V±5%, this machine ensures reliable performance. Certified by CE, MD, and ISO9001, it offers uniform sorting quality, minimizes labor efforts, and maximizes the producer's value.

Model: LYZ01-0608A
Lane number: 6
Output (kg/h): 1400-2000
Voltage (V/Hz): 380/50
Power (kW): 10kW
Air Pressure (MPa): >0.6
Dimension of Main Sorting(mm): 14806x3328x2436
Weight (kg): project based

Remarks: data takes one of palm dates original from Saudi Arabia as an example. The output change according to state of raw materials, finished materials and channels division. Above data for reference only.

  • AI Deep Learning Technology: applies deep learning advancements to accurately assess and sort dates, enhancing sorting precision by size and quality.
  • 360° Rotational Scanning: delivers a thorough examination of each date by rotating the camera to capture more than 8 images from various viewpoints, ensuring accurate sorting.
  • Multifunctionality: provides integrated sizing and weighing features for dates within a 25-55mm diameter, optimizing operations by merging multiple functions into one machine.
  • Customizable Discharge Ports: includes up to 50 customizable discharge ports, designed to meet diverse operational needs.
  • Optional Internal Detection: adds a smart detection option to recognize irregularities in dates, enhancing the sorting process with improved quality control.
