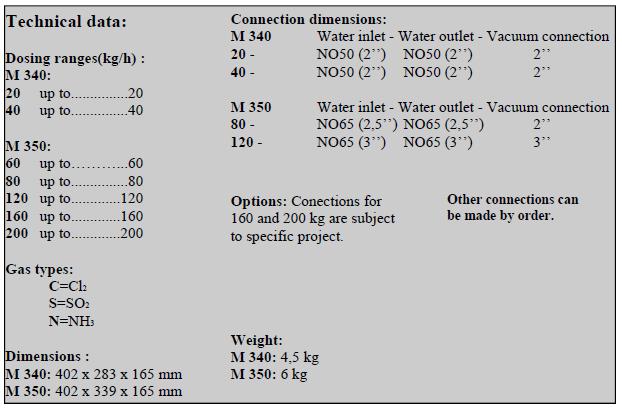

Model M 340 C And M 350 C -High Capacity Ejectors

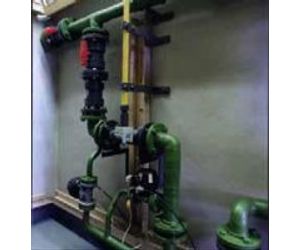

Water is taken from the main pipe to the booster pump where necessary pressure is added so the water can be pushed through the corresponding venturi where the required vacuum is achieved. To prevent water inlet into the system, ejector is equipped with the non-return valve.

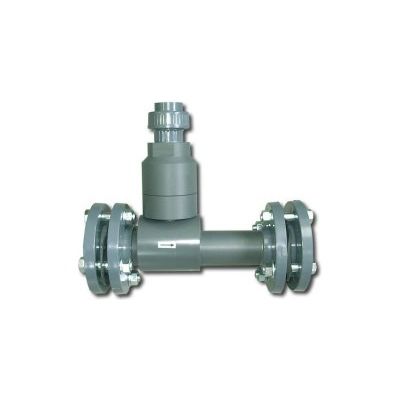

The high capacity ejectors series M 340 C and M 350 C are composed of:

• nozzle with inlet water connection
• basic body with venturi pipe and mixing chamber
• non-return valve with vacuum pipe connection
• diffuser with outlet water connection
