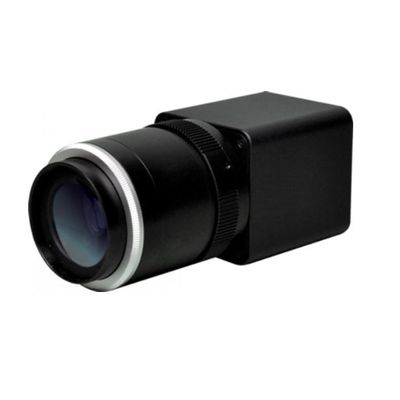

Model Mini-SWIR 1280JSX -High Definition Camera
The Mini-SWIR™ JSX Snapshot Camera (GA1280JSX) provides real-time daylight to low-light imaging in the Short Wave Infrared (SWIR) wavelength spectrum for persistent surveillance, laser detection, and penetration through fog, dust, and smoke. In addition, the camera employs on-board Automatic Gain Control (AGC) and built-in non-uniformity corrections (NUCs), allowing it to address the challenges of high-dynamic-range urban night imaging without blooming. Camera Link® digital output provides for plug-and-play video with 12-bit images for digital image processing or transmission. The light-weight and compact size enables easy integration into aerial, mobile and hand-held surveillance systems. Optional VIS/SWIR technology is available to extend the sensitivity of Sensors Unlimited cameras down to 0.5 μm, offering the advantage of both Near Infrared (VIS) and SWIR wavelength response.
- 30 or 60 frames per second full frame rate
- 1280 x 1024 pixel format, 12.5 μm pitch
- Capability for 100% duty cycle across entire illumination intensity range
- High sensitivity in 0.9 to 1.7 μm spectrum; VIS/SWIR from 0.5 to 1.7 μm (option)
- Low power, < 3.0 W at 20°C
- Partial moonlight to day time imaging
- Compact OEM module size, < 4.5 in3
- All solid-state InGaAs imager with snapshot exposure capability
- On-board, real time non-uniformity corrections
- Digital 12-bit base CameraLink® output
- Automatic Gain Control (AGC)
- Windowing, Binning and In-Field Offset Corrections
- Operation from -40 to +70°C
- Tested to MIL-STD-810G for functional shock, vibration, t hermal shock, storage temperature, altitude and humidity
Columns (32 - 1280): 1280
Rows (32 - 1024): 1024
Instructions: adjust the number of rows to determine the maximum frame rate for a given window. Frame rate does not change with number of columns on this camera. However, the number of columns can be reduced for other reasons.
Max frame rates are estimated, actual results may vary.
This calculator does not contain any export controlled technical data.
