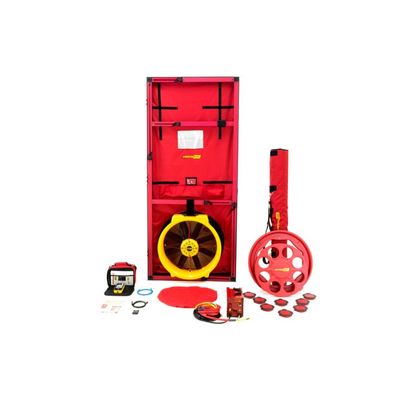

Retrotec - Model 6100 -High Flow Blower Door System

SHARE

All the features of a Model 5100 but double the power. This system will test a wide range of enclosures, from super leaky to super tight.  This high output fan includes 6 standard + 3 optional low flow ranges to provide accurate results over the widest range of enclosure volumes.  All Retrotec fans are made with extremely durable space-age hard plastic, which makes them both lightweight and tough.

Most popular related searches
blower system
blower
HVAC contractor
flow sensor
aluminum anodizing
HVAC
manometer

Who uses it?

  • Energy Auditors, HVAC Contractors, Building Contractors & Remodelers, Home Inspectors

Why Buy This Model?

  • The added power increases the range of test pressures that can be created without changing ranges mid test.
  • The stability of control reduces the fan’s response to wind and holds the test pressure more constant, making tests faster and more accurate.
  • New guide fins over the flow sensors decrease sensitivity to wind by 75%.
  • System accessory and fan cases are included.

1 x DM32 WiFi Digital Gauge Package

    • DM32 WiFi Dual Channel Color Touchscreen Manometer
    • USB Cable, 6` (1.8 m)
    • Cat5 Cable, 7` (2 m) Blue
    • DM32 USB Charging Module (120V/60Hz, 240V/50Hz, or 110V/50Hz)
    • Gauge Case
    • DM32 Magnetic Clip
    • ISO17025 calibration of DM32
    • Gauge Calibration Verification Report

1 x 6000 Series Fan Set

        • Each fan set contains:
        • 6000 Series Calibrated Fan
        • High Power Drive for 6000 Series Fan (120V/60Hz, 240V/50Hz, or 110V/50Hz)
        • Range Ring A for 5000/6000 Series Fan
        • B8 Plate for 5000/6000 Series Fan
        • 8 x 4" Blank Plugs
        • 2 x Fan Cover
        • System Calibration Verification Report

1 x SmartCloth Door Panel & Frame (new) - Single Fan

        • Aluminum Frame, Red Anodized
        • SmartCloth for 1000/2000/3000/5000/6000 Series Fan, Regular Height
        • Fan Crossbar Strap for Aluminum Frame
        • Case for Aluminum Frame
        • 1 x Case for System Accessories
        • **Optional: 50" Large Aluminum Frame Offered At Additional Cost**

1 x Case for System Accessories

1 x Fan Case

1 x Blower Door Tubing Kit

1 x Umbilical for 1000/5000/6000 Series Fan, 7 ft (2 m)
