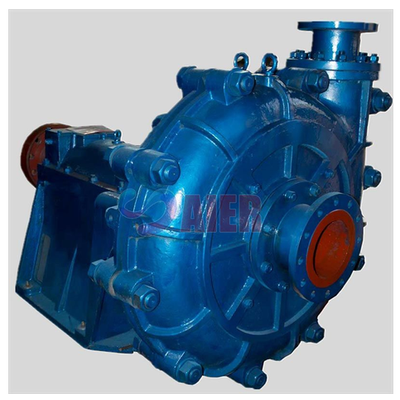

Aier - Model WG Series -High Head Slurry Pump

SHARE

In order to meet the requirements on the development of the electric power, metallurgy and coal industries, our company has designed and developed WG(P) Series up-to-date general slurry pump with large capacity, high head, multi-stages in series to remove ash & sludge and to deliver liquid-solids mixture, based on the experience of slurry pump design and manufacture for many years, and abstracting the research results of advanced technology from home and abroad.

Most popular related searches
slurry pump
metal slurry pump
high efficiency slurry pump
cooling system
head pump
bearing lubrication
lubricant system
electrochemistry
sludge removal
  • Size: 65-300mm
  • Capacity: 37-1919m3/h
  • Head: 5-94m
  • Handing solids: 0-90mm
  • Concentration: Max.70%
  • Max.pressure:Max.4.5mpa
  • Materials: Hyper chrome alloy etc.
  • AIER® WG High Efficiency Slurry Pump
  • CAD modern design, super hydraulic performance, high efficiency and lower abrasion rate;
  • Wide passage, non-clogging and good performance of NPSH;
  • Expeller seal combined with packing seal and mechanical seal have been adopted to guarantee the slurry from leakage;
  • Reliability design ensures long MTBF(mean time between events);
  • The metric bearing with oil lubrication, reasonable lubricating and cooling systems ensure the bearing to be operated under low temperature;
  • The materials of wet parts have good performance of anti-wearing and anti-corrosion;
  • The pump can be used for seawater ash removing to prevent it from the corrosion of seawater, salt and mist, and electrochemical corrosion;
  • The pump can be operated in series with multi-stage within permissible pressure.
  • The pump has the advantages of reasonable construction, high efficiency, reliable operation and easy maintenance. It can be widely used for handling the mixture contained of abrasive and corrosive solids in electric power, metallurgy, mine, coal, constructional material and chemical industry departments, especially for removing ash and sludge in electric power station.
