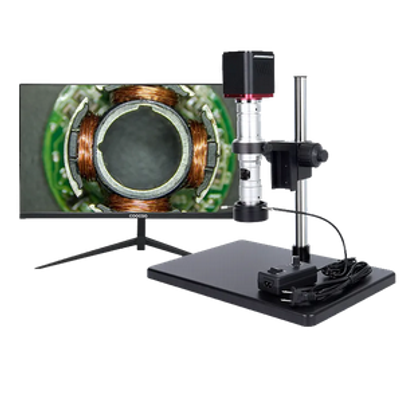

MCscope - Model MC-ZTS-4KA 4K Wi-Fi -High Magnification Microscope
The MC-ZTS-4KA integrates 4K imaging with built-in Wi-Fi streaming for truly portable, networked inspection. With HDMI, USB3.0, and GigE outputs plus advanced measurement tools, it supports remote diagnostics and flexible lab layouts in electronics and research facilities.
Most popular related searches
- Portable Wi-Fi/Gigabit Ethernet: Remote live streaming to teams
- Automatic Edge Finding: AI-assisted feature recognition
- SDK for Secondary Development: Custom software integration
- Anti-Reflection Coating: Glare reduction on glossy surfaces
- Built-in Scale: Instant in-frame measurements
- Optical Magnification: 0.7–4.5X adjustable zoom
- Total Magnification: 28–200X continuous magnification
- Resolution: 3840×2160P @ 60FPS (4K UHD)
- Camera Pixel: 8 Megapixels
- Output Interface: HDMI + USB3.0 + Gigabit Ethernet
- External Devices: Compatible with HD monitor and computer
- Auxiliary Lighting: 40-piece high-quality LED ring light
- Focusing System: Coarse and fine focusing knob
- Fine Adjustment Precision: 0.002mm
- Focusing Travel: 50mm
- Bracket Size: 250×380mm base; pillar height: 340mm; diameter: 25mm
- 4K Ultra HD @60FPS
- HDMI + USB3.0 + GigE outputs
- Portable Wi-Fi connection (supports mobile viewing)
- Built-in Measurement System
- Auto Edge Detection
- Photo and Video
- U-Disk Storage & Screenshot
- Support for secondary development (API/SDK available)
- Optical Size: 1/1.8 inch
- Resolution: 3840×2160P @60FPS
- Output: HDMI + Gigabit Ethernet port + USB3.0
- External Devices: Monitor + PC+ Mobile phone
- Functions:Automatic edge finding, Portable WiFi, Anti-reflection, Scale, Built-in measurement system, Secondary development.
