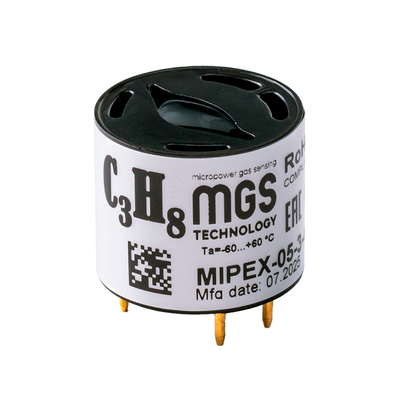

MGS Technology - Model MIPEX-05 PPM [C3H8] -High-Performance NDIR Sensor
HIGH-SENSITIVE VERSION OF ULTRA-LO` POWER PROPANE SENSOR. MIPEX-05 ppm [C3H8] is a high-performance NDIR sensor in the 4th series housing with 10 ppm resolution. It is designed to detect propane at low concentrations - fro. just 30 ppm - making it ideal for early leak detection in hazardous areas.
MIPEX-05 ppm [C3H8] is widely used for emission monitoring and health safety thanks to 10 ppm resolution and improved sensitivity. Due to low-power consumption and high resolution, it allows battery-powered gas detectors to work more years on a single battery and detect low concentrations.
ULTRA-LOW POWER CONSUMPTION
Average power consumption below 0.3 mW.
INTEGRATED MICROCONTROLLER
Returns linearized and temperature-compensated digital output via UART interface.
TECHNOLOGY
The simultaneous control of ppm and LEL concentrations. Dual-wavelength technology minimizes interference from water vapor and contamination, ensuring high measurement reliability.
Explosion-proof design
Intrinsically safe explosion protection level “ia” in compliance with: IECEx, ATEX, UL913, CSA.
Standard 4th series size
Durable plastic housing ⌀20.1×16.6 mm for easy integration.
LONG-TERM MEASUREMENT STABILITY OVER 10 YEARS
