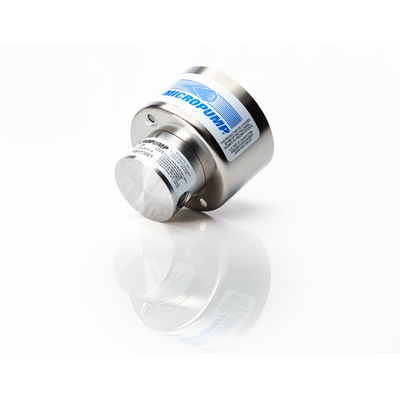

Micropump - Model GA Series -High-Performance Pumps
FromMicropump Inc.
The GA Series high-performance pumps provide precise and pulseless flows. Featuring Micropump's patented suction-shoe design, GA Series pumps self-compensate for wear, ensuring near zero slip and a longer pump life. Pumps are available in a wide range of materials and configurations. The GA Series are our smallest, most compact size but offer a powerful option for your system.
Most popular related searches
magnetic drive gear pump
engine emissions control
rare earth
spur gear
pump technology
engine emissions
gear pump
emissions control
magnetic drive pump
magnetic pump
Displacement: 0.017 ml/rev (X21)
0.042 ml/rev (V21): 0.092 ml/rev (T23)
Recommended Speed Range: 500-5500 RPM
Flow Rate (min): 8.5 mL/min | 0.13 US gal/hr
Flow Rate (max): 506 mL/min | 0.134 US gpm
Differential Pressure (max): 5.2 bar | 75 psi
System Pressure (max): 21 bar | 300 psi
Temperature Range: -46 to 177 °C | -50 to 350 °F
Viscosity Range: 0.5 to 1500 cP
Weight: 0.31 to 1.1 kg | 0.68 to 2.40 lbs
Standard Ports: 1/8"-27 NPT(F)
Analytical Equipment
Fuel Cell Technology
Diesel Engine Emissions Control
