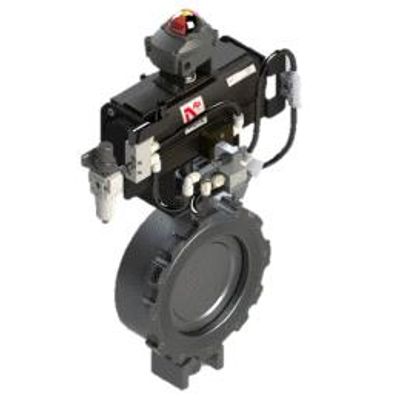

Air-Plus - Model APSA Series -High Performance Special Valve
Air-Plus valve is a high performance special valve and is used all over the world in Material Handling Systems in a wide range of industries. Air-Plus valves are capable of handling powdery and granular materials like flyash, bottom ash, boiler bed sand, limestone and zet mill. Air-Plus valve has a simple construction and automatically inflating sealing mechanism which operates with compressed air ensuring minimized wearing. Air-Plus valve closes also through the material, opening the material flow only a quarter turn from fully closed to fully open. The design of Air-Plus valve makes it extremely reliable and easy to maintain, providing long maintenance intervals.
- Valve type : Butterfly
- Operations : Actuator / Manual (Handle)
- Valve Sizes : 2" 40" (50A-1.000A)
- PressureRating : Wafer Type
- Connection : Actuator / Manual (Handle)
- Temperature : -20t +200t
- Applications : COG / LDG Gas. Oligosacc
Inflated Seat
The seat deflates during open and close, therefore avoiding contact with the disc and eliminating wear
Deflated Seat
The seat inflates only when the disc is closed. Providing more sealing surface and on even pressure distribution against the disc.
Internal Coated Options
- Tungsten-Carbide Hard Coating
- Teflon Coating
- Nickel-Chrome Coating
- Epoxy Resin Coating
