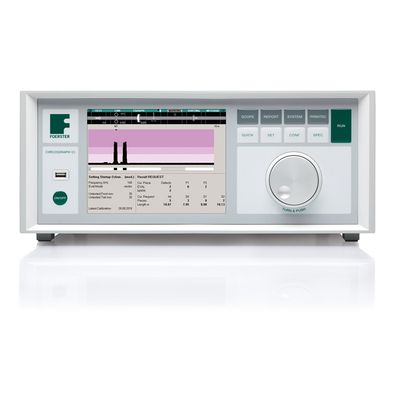

Foerster - Model CIRCOGRAPH CI -High-Precision Rotating Test System
The CIRCOGRAPH CI combines a compact design with intuitive operation in one high-precision rotating test system. The CIRCOGRAPH CI features a user-friendly operation unit as well as easy "Turn-and-Push" rotary switch. The 2-channel system can be adjusted optimally to suit your test tasks thanks to a large range of different rotating heads. Longitudinal defects in the material surface can thus be detected from depths as low as 30 µm.
Most popular related searches
- Compact design
- Simple operation thanks to integrated operation unit and "turn-push" operation
- Universal testing system, can be adapted to individual applications and requirements
- 2-channel test system
- Seamless, continuous testing
- Defect depth resolution from 30 µm
- Test material: Ferromagnetic, austenitic, and non-ferromagnetic material
- Sensor system: Rotating sensor system with a maximum of two (Ro 20 and Ro 35) opposite test heads
- Excitation frequencies: 30 kHz - 1 MHz
- Max. throughput: 3 m/s during continuous testing
- Defect display: from 30 µm at Ro 20 / Ro 35
