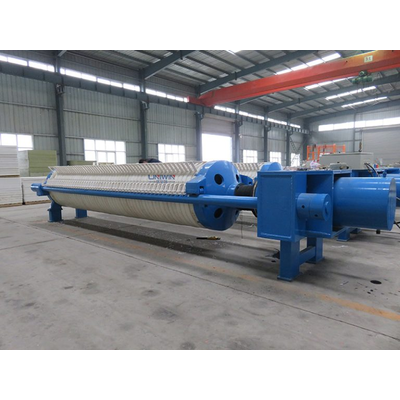

Uniwin - Model RFP Series -High Pressure Filter Press

• High Pressure Filter Press: With round filter plates, high-pressure PP filter plates can bear max 20 bar feeding pressure.
• Features: Stable operation, high feed pressure, long service life.

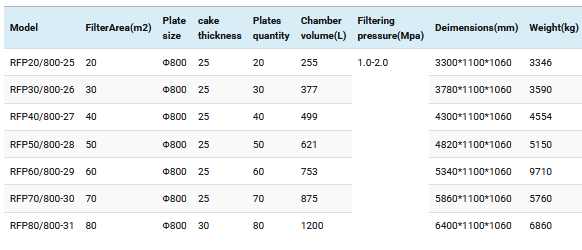

• Filtering area:20-100 m2
• Filtering pressure:1.0-2.0 Mp

High-pressure circular filter press is a solid-liquid separation equipment using a circular filter plate, mainly used in the ceramic industry, stone wastewater treatment, kaolin, building materials, etc. In addition, it’s high pressure increases processing capacity, improves work efficiency, and reduces moisture in solid materials.

Usually, the filter plates of the high-pressure filter presses are round, while there are some 800*800 or 1250*1250 mm square filter plates; usually, pressure can reach 0.8 -1.0 Mpa. Round filter plates are thicker than common plates, and the thickness is 60-70 mm for our standard round filter plates.

The high-pressure round filter press mainly uses the pressure difference on both sides of the filter cloth to achieve solid-liquid separation. When working, the compression device will push the compression plate to compress the filter plate and filter cloth between the compression plate and the thrust plate, thus forming a closed filter chamber. After that, the material will enter each filter chamber through the feed hole on the feed pump and the thrust plate. As the material continues to enter, the solid particles are trapped in the filter chamber to form a filter cake. The liquid, under the action of pressure, penetrates the filter cake and filter cloth and is discharged out of the body through the liquid outlet hole.

• The round filter plate is resistant to high pressure, and the moisture content of the filter cake is low.
• Stable operation, high feed pressure.
• High unit output and long life.
