SERO PumpSystems GmbH

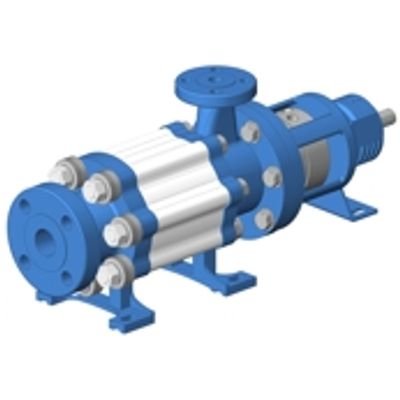

Sero - Model SHP Marine -High Pressure Pump
Low Flow and High Heads. Low NPSH requirements. Incorporating many API features. Rugged multi-stage pump with barrel design.
Most popular related searches
high-pressure pump
double cartridge mechanical seal
cartridge mechanical seal
multistage pump
low flow pump
barrel pump
- Capacity: 1,5 up to 6,5 m3h
- Pressure Head: 250 up to 1000 m
- Nominal Pressure: 65bar(LPG)/95bar(NH3)
- Temperature: -55 °C up to +60 °C
- Suction Height: non-self priming
- Speed: 950 up to 3600 1/min (VFD operation)
- Materials: A-8 orTT8 (Special design)
- Shaft Seal: Double cartridge mechanical seal (dry run)
- Specials: Marine approval (type approval)
