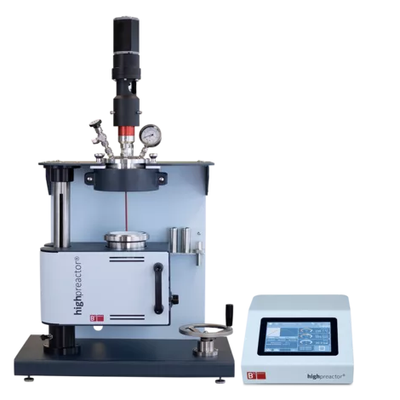

Berghof - High-Pressure Reactors
The individually configurable BR reactors offer easy handling, flexibility and functionality while providing maximum safety up to 200bar, 300°C and 25ml to 5.7 liters. The PTFE lining allows working with corrosive media.
Easy handling coupled with flexibility.
- Flexibility and individuality
- Easy handling
- Highest Safety Standards
- PTFE lining for effective corrosion protection
-
Berghof reactors are designed modularly and are configured according to your requirements.
-
All Berghof reactors can be operated with or without PTFE lining.
-
The reactor volume can be optimally adapted to your needs by using different inserts.
-
A wide range of accessories completes the reactor program: different stirring techniques, stands and lift systems, reagent addition and sampling, sample holders, probes and electrode feedthroughs...
-
If you still cannot find what you are looking for, we can also design reactors and components to meet your individual requirements.
-
With the unique quick-release fastener, you can open and close the reactor easily and simply by hand without tools.
-
All fittings can be easily removed and refitted in just a few steps - e.g. for cleaning or component replacement.
-
We use only high quality materials for reactor construction such as SS316TI and Hastelloy C-22.
-
Berghof sizes, tests and manufactures its high pressure reactors in accordance with current AD-2000 guidelines.
-
TÜV Süd approves each vessel design for highest international safety standards
-
Certificated pressure tests for safety and tightness for each reactor
-
Externally controlled pressure tests for reactors with a volume of 1L or bigger
-
All reactors are equipped with a rupture disc
-
Safe opening key for all quick lock systems
-
For the use of highly corrosive media, thick-walled PTFE inserts or a complete PTFE lining of all wetted parts are available. Due to its exceptional chemical resistance, PTFE is a cost-effective alternative to special alloys.
-
Media contact of the reactor vessel is prevented by the O-ring seal in combination with the PTFE insert and cover lining.
-
In addition to unsurpassed corrosion protection, they benefit from reduced contamination and easier cleaning. PTFE inserts also serve as practical storage vessels for reaction mixtures.
- Technology
- Various kinds of synthesis like hydrogenation of C-C triple bonds, synthesis of metal nanoparticles, solvothermal synthesis and drug synthesis
- Synthesis like hydrogenation of C-C triple bonds or homogenous/heterogeneous catalysis
- Catalyst research like tests of catalysts consisiting of liquid or solid materials
- Automotive
- Material testing like aging tests of e.g. elastomers, ceramics or metal parts
