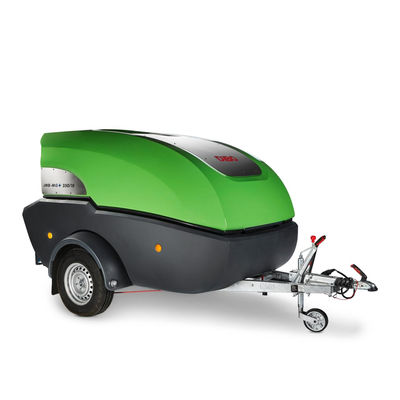

DiBO - Model JMB-MG -High Pressure Trailer

DOUBLE-WALLED housing in POLYESTER:

• Noise-insulating
• Optionally available in different RAL colours

Digital operation with joystick

Unnecessary and impossible to open the trailer for cleaning => the controls and all tools are within easy reach on the outside.

Unique storage system for tools and accessories.(see picture)

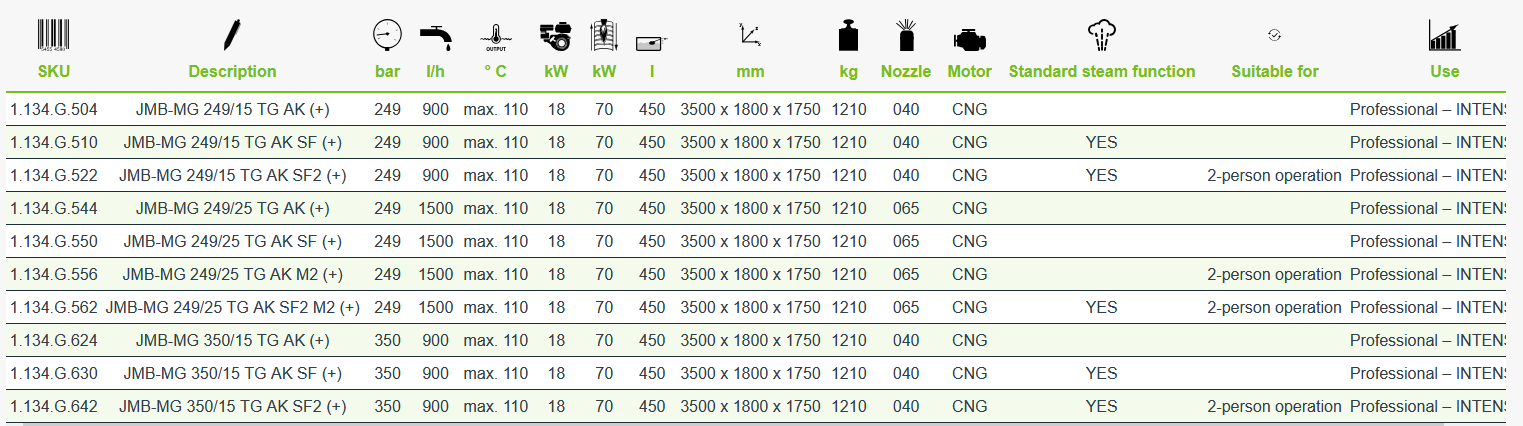

The `Description` of the various types can be found on the Product info sheet under Downloads

Stainless steel DiBO hose reel with 40 m high pressure hose (3/8")
Stainless steel DiBO hose reel with 25 m low pressure hose (3/4")

Industrial 18 kW water-cooled Kubota motor running on CNG gas with heat recovery system. The motor’s heat recovery system means less energy consumption is needed to bring the cleaning water up to temperature

Optimal CNG motor safety, being fitted with a CAN BUS-controlled ECU and DiBO control unit.

70 kW GreenBoiler-CNG

Control 24 VDC and burner 230 VAC

CNG tanks (2x 75 l) with gas pressure regulators - gas pressure regulation circuit with the necessary safety and detection devices

Electronic level indication with low level monitoring for the water tank and CNG tanks.

Radial high pressure pump with 3 ceramic plungers and stainless steel valves

Washable water filter

Pressure-free starting

Auto-stop system stops the engine after 30 min. without spraying activity

450 l built-in water tank (only for TG and S version)

Pressure relief up to <25 bar with sealed gun >>> safety

Electronic pressure and flow regulation via electronic speed engine governor

Digital control and reporting on display of:

• motor functions
• flame monitoring
• water level
• CNG level for both tanks

Automatic idling >>> less consumption (*)

Trailer version: galvanized trailer fitted with support and swivel wheel, an AL-KO chassis with rotation casted polyethylene tank and polyester housing

Required towing capacity = 1800 kg
