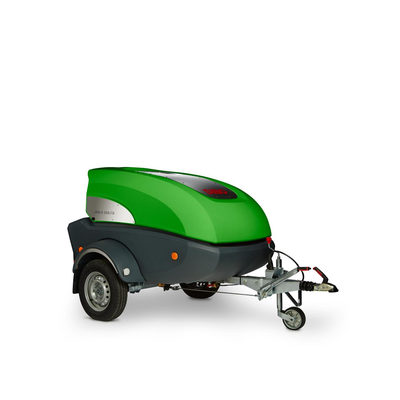

DiBO - Model JMB-S/S+ -High Pressure Trailer
The DiBO JMB-S is an ultra-compact mobile hot water high pressure cleaner on a trailer with attractive appearance and equipped inside with the latest and greenest technologies. With its own power source and independent operation, also for use in places where no electricity supply is available. With the option of cleaning with cold or hot water at high pressure, this high pressure cleaner is suitable for a wide variety of cleaning work. A low center of gravity in the middle at the axle ensures optimum load distribution, that together with the weight of
Quality and power harmoniously united in this high pressure trailer:
- Industrial diesel motor selected per machine type depending on the radial high pressure pump.
- 70 kW DiBO GreenBoiler offering 18% fuel savings.
- Intercooling system with heat recovery from the motor used to pre-heat the water through a heat-exchanger. The result is additional fuel savings of 15%.
High pressure trailer with greatly improved ease of use
To make your high-pressure cleaning even easier, this high pressure trailer is equipped with intuitive digital operation by joystick. The display guides the user through the user program step by step. There is the continuous display of the status of the machine while cleaning with this high pressure cleaner. Operating pressure, temperature, fuel level (*) and level in the water tank (*) are just a few important parameters.
Besides the standard version, this JMB-S high pressure trailer is also available as a full option “+” version.
The JMB-S+ version includes:
- New, advanced track & trace system
- Electronic level indication for fuel and water tank
- Electronic gas regulation with automatic speed control
- Real-Time Monitoring System (RTMS) with which the owner can see the exact status of the machine on a smartphone, computer or tablet.
New operating panel with digital display and joystick:
- Everything visible at a glance. Easy to adjust with a handy joystick and to operate with gloves.
- Electronic setting of the temperature (exact & constant)
- Electronic control with pressure gauge, hour counter, maintenance information, error messages and device functions that facilitate maintenance.
- The digital display indicates continuously the status of the machine and alarm.
Modern & aerodynamic design for less air resistance
UV-resistant double-walled housing in rotation moulded polyethylene >>> sound insulated: ? 85 dB
All functionality needed for the activities are brought together on the rear of the machine - everything within hand reach
Trailer version is built on a galvanized trailer fitted with support and swivel wheel
Ultra-compact and lightweight
Stainless steel DiBO high pressure hose reel with 40 m high pressure hose (3/8")
High-tech heating system
- 70 kW GreenBoiler for a greater efficiency > 92%
- 18% fuel saving
- Low CO2 emission
- Low maintenance cost
70 kW GreenBoiler + 20 kW Intercooling = 90 kW heating capacity
Industrial diesel motor water cooled in combination with a heat-exchanger, ensuring the pre-heating of the supply water with a further 15% in fuel savings
Total fuel savings of 33% with the GreenBoiler (18%) and heat-exchanger (15%) combination
Radial high pressure pump with 3 ceramic plungers and stainless steel valves
Boiler with independent motor fitted and fuel valve with electronic ignition
12 V operating voltage for electronic control and for the burner
Washable water filter
Run dry protection on the water and fuel tank
Automatical stop system after 30 minutes of inactivity
Automatic pre-glowing
200 l built-in water tank (only for "T" "TG" and "S" version)
Pressure reduction up to 10 bar with sealed gun
Pressure and flow regulation via speed engine governor (manually (standard) or electronically ("+" version))
Digital control and reporting on display of :
- motor functions
- flame monitoring
- water level (*)
- fuel level (*)
Note: (*) = only at "+"-version
