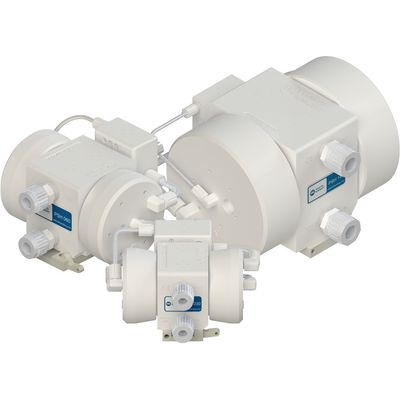

White Knight - Model PSH Series -High-Purity Bellows Pump

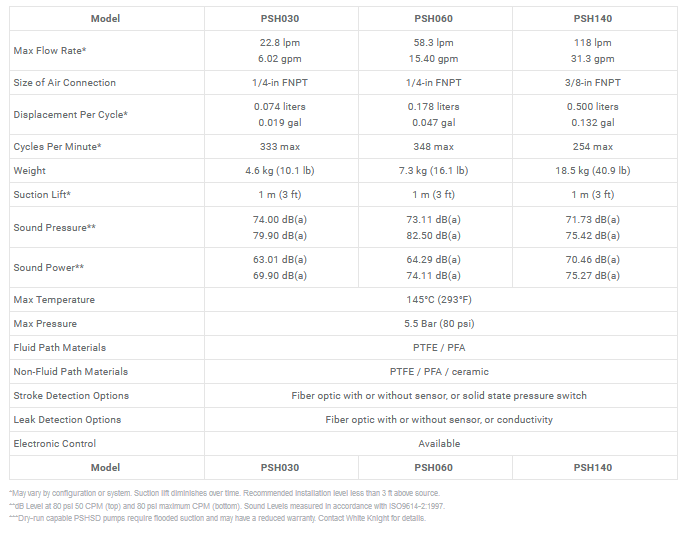

PTFE and PFA Pumps Capable of 145°C with On-Board Shuttle Valve. PSH Series pumps are the ideal solution for high temperature, ultra-pure recirculation and delivery applications. These PTFE and PFA pumps are completely metal free and operate with a unique shuttle valve that eliminates the need for complicated detents and manual resets. They perform safely and reliably running continuously throughout their two-year warranty. They offer air supply pressures up to 5.5 Bar (80 psi) and operate in thermal cycling applications with fluid temperatures up to 145°C (293°F). The pumps are available in four models, PSH015, PSH030, PSH060 and PSH140, which are capable of maximum flow rates of 15, 30, 60 and 140 lpm, respectively.
- 100% Metal-Free
- Process-safe PTFE/PFA flow paths
- Leak-proof, machined design
- PTFE heads with Buttress-Threads
- No O-rings; never retorque
- No lubrication in shift mechanisms
- No impellers or magnets in fluid path
- Pneumatic Logic™ minimizes liquid pulsation and pump vibration
- Various liquid connection styles and sizes
- Safe, leak-free operation due to no-metal design
- Ceramic in air shuttle valve
- Minimal parts for durable design
- Class 100 cleanroom assembly, testing, and packaging
- Easy to install and service
- No preventative maintenance during two-year warranty
- Robust bellows allowing for supply pressure of 5.5 Bar (80 PSI)
- Dead-head capable operation

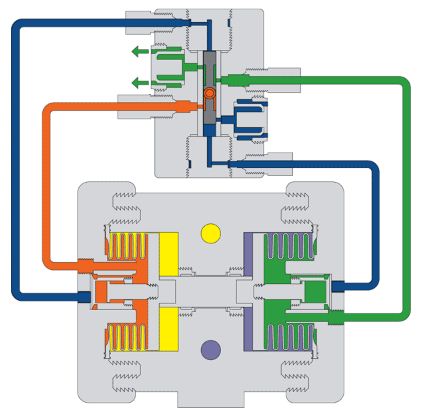

PSH Series pumps feature White Knight’s Pneumatic Logic™, a detent-free shuttle valve design that improves performance and reliability by minimizing vibration, pulsation and wear.
