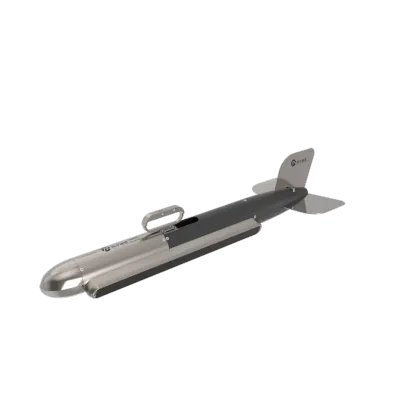

Hydro-Tech - Model SS900 -High Resolution Side Scan Sonar
SS900 is a towfish side scan sonar specifically designed for emergency and rescue application. With the leading self-adaption wave adjustment technology combining broadband signal processing and image equalization technology, SS900 can clearly scan various underwater small targets and complex structures. So it had been widely used in rescue teams.
- Small Size and Light Weight
The key requirements of emergency application are rapid response. So we control the overall weight of SS900 less than 10kg in order to have it easy for hand carry and implement onto various types of inflatable boats, speed boats and other kinds of platforms. It is extremely portable and one person can handle it smoothly.
- High Definition and Clear Target in View
Innovative image equalization technology is adopted to enhance image contrast and present the terrain background image in high-definition. With the latest adaptive waveform adjustment technology and broadband signal processing SS900 can provide a larger scanning range.
- Easy Operation and Quick to Use
We simplify the installation procedure to 3 steps and shorten the preparation into 2 minutes. So that everybody after training can get it ready and put SS900 into usage rapidly. Every second is the time to save and rescue from loss.
Technical Specifications
- Working Frequency : 900kHz
- Across Track Resolution : 1cm
- Along Track Resolution : 0.07m@20m, 0.17m@50m, 0.26m@75m
- Vertical Beam Width : 50°
- Parallel Beam Width : 0.2°
- Signal Type : CW/Chirp(Auto-adaptive)
- Max. Slope Range : 75m
- Max. Working Depth : 300m
Physical Specifications
- Size : 76cm x 23.5cm x 14.6cm
- Weight : 2.7kg
- Power Supply : DC 20V - 30V
- Power Consumption : 15 - 35W
- Deck Interface : 100M Ethernet
- Software : HydorSonar Display & Control Software
- Compatitable with Hypack & SonarWiz Post Processing Software
