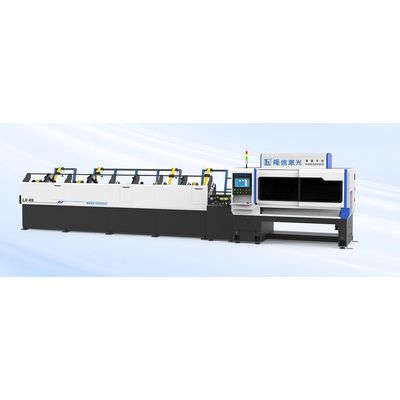

Longxin - Model LX-K6 -High-Speed Automatic 3D Laser Pipe Cutting Machine

SHARE

High-speed Automatic 3D Laser Pipe Cutting Machine 1000-3000W. Automatic Full Pneumatic Chuck. High-power Intelligent Auto-focusing Laser Head. Smart 6 Wheel Clamping.  Automatic Feeding System.  Self-Developed CNC Control System.

Most popular related searches
laser cutting machine
3D tube laser cutting machine
automatic cutting machine
stainless steel tube
piping design
discharge pipe
pipe clamp
cutting system

High-speed Automatic 3D Laser Pipe Cutting Machine

  • 1000-3000W
  • Cutting Range Φ15-60mm
  • High-Speed Cutting
  • Fully Automatic Feeding System
  • High Efficiency And Stability
1.5G High Speed + Storm Cutting
High Speed + Storm Cutting Φ20 thick 1.05 stainless steel tube, 0.8S/piece, 8h/day, 36000 pieces/day; For 15X15-60X60MM round pipe, square pipe cutting
Automatic Full Pneumatic Chuck
Fully automatic pneumatic chuck, stable and efficient. One key to open the clamp, automatic centering, speed is 3 times of electric chuck. Pneumatic open clamp, large clamping force and adjustable strength, heavy tubes do not loosen and do not slip, light tubes do not deform, to ensure cutting accuracy.
High-power Intelligent Auto-focusing Laser Head
Freely design and instantly cut all kinds of complex graphics or text products, trigger more new pipe design inspirations, help you quickly complete the development of new products, and reduce R&D costs.
Smart 6 Wheel Clamping
6 feeding rollers clamp the pipe, no need to reset the feeding cycle Reduce the waiting time and greatly improve the cutting efficiency.
Self-Developed CNC Control System
Deep optimization and ultra-fast response Cooperate with Radan professional graphics nesting software,The perfect combination of speed, function and stability.

Automatic Feeding System
Putting raw materials into the storage area in batches can realize automatic conveying, automatic cutting and automatic feeding Automatic blanking.
Automatic Feeding System
The feeding mechanism adopts automatic arrangement. The pipes in the storage area are sent to the discharge area in turn by the transmission mechanism, and the limit device in the discharge area will ensure the orderly discharge of the pipes.

  • Laser Power: 1000-3000W
  • Acceleration: 1.5G
  • Cutting Diameter Of Round Tube: <P15-60mm
  • Cutting Diameter Of Square Tube: O15x15-60x60mm
  • Cutting Tube length: <6200mm
  • Accuracy Of Processing: ±0.1 mm
  • Dimensions (L*W*H): 9300x1500x2110mm
  • Weight: 4t
  • Cutting Tube Type: Round Tube / Square Tube
  • Cutting Material: stainless steel, carbon steel, aluminum,copper,iron
