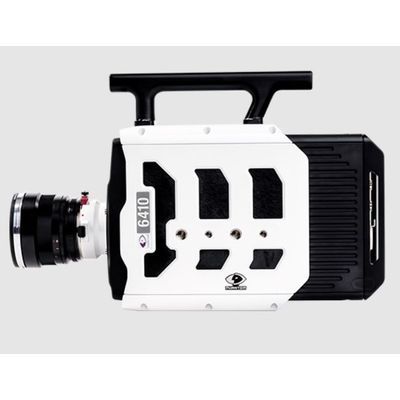

Model 6410 -High-Speed CMOS Sensor
The Phantom TMX 6410 utilizes a back side illuminated CMOS sensor designed for high-speed imaging. The 64 Gigapixel throughput allows for extreme frame rate speeds that are capable of delivering up to 1.5M fps with a 95ns minimum exposure time with our FAST option. All frame rates are actual data, with no interpolation, for the most accurate results. This is only possible because of the advancements of utilizing back side illuminated sensors in high-speed imaging. In BSI sensors, the metal components that can block incident light from the photodiodes are located in the back of the sensor, and can be designed to reduce processing overheads, making the power of a TMX possible. For an in-depth look at how this technology has revolutionized high-speed imaging read our whitepaper on BSI Sensor Technology.
At the full 1 Mpx resolution of 1280 x 800 the TMX 6410 records at almost 66,000 fps. The 6410 provides larger resolutions than possible before for applications needing high frame rates. For example, the 6410 can reach over 300,000 fps at 1280 x 160 or 640 x 320 (binned). These incredible speeds mean that data management is vital to ensuring as little downtime as possible. Like other TMX models up to 512GB of onboard RAM and the Phantom CineMag (non-volatile storage) data management options are available.
The TMX 6410 has access to all of the traditional Phantom features that make camera use easy. Both on-camera controls and compatibility with our Phantom Camera Control software assist in ensuring that researchers of a variety of industries and applications have the tools they need to make their experiments a success.
Interchangeable lens mounts (PL, C, M42 and Canon EOS) are also available to help customize the same camera to a variety of application needs.
- 18.5 micron pixel
- 12-bit depth
- CineMag V compatibility
- 511 Memory partitions
- Programmable I/O - Assign and define camera signals
- The Phantom TMX 6410 1-Mpx camera offers true high-speed performance
- Provides almost 66,000 fps at full 1-Mpx, 1280 x 800 resolution
- 1.5M fps with FAST option at reduced resolutions
- The TMX 6410 uses the industry's first high-speed back side illuminated (BSI) sensor.
- 64 Gpx/second
- Minimum frame rate is 100 fps
- Standard Mode Max Speeds:
- 1280 x 800 is 65,940 fps (full resolution)
- 1280 x 64 is 758,330 fps
- 1280 x 32 - 1.5M fps (FAST option only)
- Binned Mode Max Speeds:
- 640 x 384 is 267,640 fps (full resolution)
- 640 x 128 is 758,330 fps
- 640 x 64 - 1.5M fps (FAST option only)
- CMOS Back Side Illuminated (BSI) Sensor
- 1280 x 800 pixels
- 18.5 µm pixel size, 37 µm with binning enabled
- 23.7 mm x 14.8 mm; 27.94mm diagonal
- 12-bit depth
- CAR in 256 x 32 increments, 128 x 64 in Binned modes
- EMVA 1288 measurements at 532nm
- Standard Mode:
- Quantum Efficiency: 77.6% mono; 64.9% color
- Max. SNR: 39.4 dB
- AST (p) 31.8 mono; 44.4 color
- Saturation Capacity (e-): 8736 mono; 9720 color
- Temporal Dark Noise: 24.18 e-
- Dynamic Range: 51.0 dB
- Binned Mode:
- Quantum Efficiency: 72.0%
- Max. SNR: 45.2 dB
- AST (p) 98.9
- Saturation Capacity (e-): 33,184
- Temporal Dark Noise: 70.69 e-
- Dynamic Range: 53.4 dB
- Binned Mode is Mono Output Only
- 1 µs minimum exposure standard, 95 ns minimum exposure with FAST option (export controlled)
- Global electronic shutter
- Extreme Dynamic Range (EDR)
- Auto Exposure
- Exposure Index (E.I.) for controlling apparent ISO
- Shutter Off mode for PIV
- 128GB, 256GB, 512GB high-speed internal RAM
- Up to 511 memory partitions.
- CineMag V for non-volatile storage (2TB, 8TB)
- 5 seconds at maximum frame rate, 12 bits, 1280 x 800 resolution and into maximum internal memory
- Longer record times are possible at reduced resolutions and when recording directly to a CineMag at lower frame rates
- 10Gb Ethernet standard
- Binned mode for double the vertical resolution at high frame rates
- Multi-cine mode and up to 511 memory segments
- Continuous recording
- Event marking
- Frame timestamp
- IRIG In (modulated and unmodulated)
- IRIG Out (unmodulated)
- Sync-to-Trigger
- Shutter off mode for PIV exposure
- 229 ns straddle time
- Burst mode
- Internal mechanical shutter for automatic/remote Current Session Reference (CSR)
- DHCP or Secondary IP address
- Field-based firmware upgrade capable
- Programmable trigger location (pre/post trigger recording)
- Image-Based Auto-Trigger standard
- Trigger from software
- Hardware trigger BNC
- Frame synchronization to internal or external clock (FSYNC)
- IRIG in/out
- SMPTE
- Ready output (high when camera is armed and ready to record)
- Strobe output (low during frame exposure time)
- Dedicated Trigger, Timecode In ports
- Dedicated Remote port for RS232
- Dedicated Range Data
- 4 Programmable I/O ports includes adjustable (assign and define) signals including:
- F-sync
- strobe
- event
- trigger output
- ready and more
- Gb Ethernet (standard)
- 10Gb Ethernet standard for control and data downloads
- WiFi via USB Dongle for control
- (option to order from factory with disabled WiFi)
- Phantom Camera Control Software (PCC)
- On-Camera Controls (OCC)
- SDK available
- 2X 3G HD-SDI ports
- Supports up to 1080p60.
- Nikon F-mount standard, supports F & G style lenses
- Canon EOS mount optional
- PL-mount optional
- C-mount optional
- M42-mount optional
- (lens not included)
- Brightness
- Gain
- Gamma
- Saturation
- White Balance
- Pedestal
- Tone curve
- Filters
- Color matrix
- Image flip and rotate
- Crop
- Scale
- National Instruments M- and X-Series DAQ modules with integrated support in PCC
- Basic measurements via Phantom Application:
- Distance
- Speed
- Acceleration
- Angles and Angular Speed
- Manual and Automatic point collection for target tracking
- Compatible with 3rd party solutions
- Cine RAW & Cine Compressed
- AVI, h.264 mp4
- Apple ProRes .mov
- Multipage TIFF
- MXF PAL & MXF NTSC
- Uncompressed QuickTime
- Windows BMP
- OS/2 BMP, PCX, TGA
- TIFF, LEAD, JPEG
- JTIF, RAW, DNG, DPX
- 100 - 240 VAC, 400 Watt power supply included
- 20 - 28 VDC secondary power input on back panel
- CineMag
- 7 x 7.4 x 11.7 inches, 17.8 x 18.6 x 29.7 cm (H, W, L)*
- weight: 20 lbs, 9.1 kg
- Non-CineMag
- 7 x 7 x 11.7” (17.8 x 17.8 x 29.7 cm)*
- Weight: 20 lbs, 9.1 kg
- *Handle adds 2 inches (5.2 cm) to height.
- Operating Temperature: -10 to +50 C
- Storage Temperature: -20 to + 70 C
- Regulatory(EMI/EMC/ESD):
- Emissions: EN 61326-1, FCC part 15
- Immunity: EN 61326-1
- Shock:
- Operational: MIL-STD-202H Method 213-B. Rated 30G, sawtooth wave, 11 ms, +/- 10 pulses all axes.
- Vibration:
- MIL-STD-202H Method 214-i; Test Condition A.
- Rated 5.3 Grms; 15 min/axis
- Safety: IEC 60950-1
- Phantom SDK
- LabView
- MatLab
- Power supply 400W w/ XLR cable
- Ruggedized Ethernet cable
- BNC cable
- Phantom PCC software
- Getting Started Guide
- Rugged case with custom foam for protection
- FAST Option
- Canon EOS mount
- C Mount
- PL Mount
- M42 mount
- LED lights
- CineMag V
- CineStation IV
- Video monitor for use with on-camera controls
