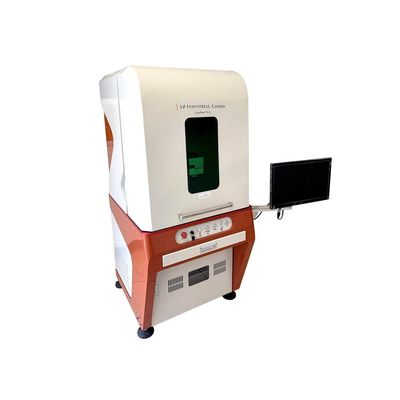

LasePen - Model U-3 Standard -Highly Powerful and Efficient Stand-Alone Marking Machine
LasePen®U-3 Standard is a highly powerful and efficient stand-alone marking machine that utilizes UV laser source. UV Laser Marker has its unique advantages due to the small beam size and high beam quality. It works on a variety of materials such as Glass, ceramics, metal, plastics, semiconductor silicon wafer, crystals, sapphire, rubber, etc. LasePen®U-3 Standard is a classic design with Class I enclosure. XYZ and rotary axes accessories are available.
Laser source: UV Laser 3W/5W
Laser wavelength: 355nm
Pulse Repitition Rate: 20-100kHz
Laser beam control: Galvo scanning marking style
User control interface: EZCAD2
Working area: 100 x 100 mm2 (customizable)
Max load: ~50 kg (~110 lbs)
X/Y platform: Adjustable precision platform, manual
Z axis: Motorized, programmable
Safety enclosure: Class I safety enclosure with safety interlock switch
Marking speed: Max 7000mm/s@F=163mm
Minimum Line Width: 0.01mm @ F =163mm (per material)
Minimum Character Height: 0.03mm @ F =163mm
Machine dimensions: W700mm x H1563mm x D800mm (W27.5” x H61.5” x D31.5”)
Machine weight: ~255 kg (~562 lbs)
Power Supply: 110V or 220V
Total Power Consumption: ≤1.5 KW
Cooling method: Water cooling
