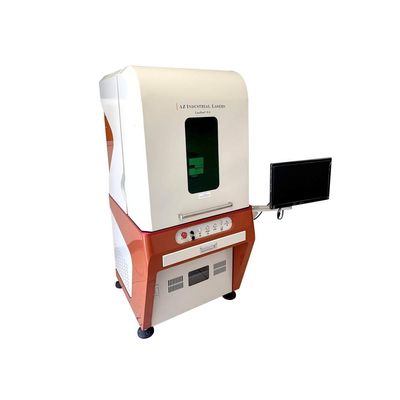

LasePen - Model F-3 Standard -Highly Powerful and Efficient Stand-Alone Marking Machine
LasePen® F-3 is a highly powerful and efficient stand-alone marking machine that utilizes fiber laser source. With high quality fiber laser and highly stable Galvanometer, Fiber Laser Marker features excellent marking quality and low maintenance cost. It has wide applications on metals and some non-metal materials. LasePen® F-3 Standard is a classic design with Class I enclosure. XYZ and rotary axes accessories are available.
Laser source: Fiber Laser 20W/30W/50W
Laser wavelength: 1064nm
Pulse Repitition Rate: 30-60kHz/30-200kHz/50-200kHz
Laser beam control: Galvo scanning marking style
User control interface: EZCAD2
Working area: 100 x 100 mm2 (customizable)
Max load: ~50 kg (~110 lbs)
X/Y platform: Adjustable precision platform, manual
Z axis: Motorized, programmable
Safety enclosure: Class I safety enclosure with safety interlock switch
Marking speed: Max 7000mm/s@F=163mm
Minimum Line Width: 0.06mm @ F =163mm (per material)
Minimum Character Height: 0.2mm @ F =163mm
Machine dimensions: W700mm x H1563mm x D800mm (W27.5” x H61.5” x D31.5”)
Machine weight: ~180 kg (~397 lbs)
Power Supply: 110V or 220V
Total Power Consumption: ≤1.5 KW
Cooling method: Air cooling
