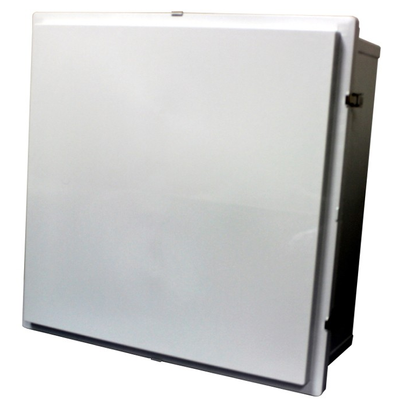

Fibox - Model AR 303010CHSS -Hinged Opaque Enclosure
FromFibox Enclosures
Including: Hinged, latched cover with formed in place PUR gasket, stainless hinge pin. quick release stainless-steel latches. Metal enclosure mounting foot kit.
More about this product— External link
Most popular related searches
- Part #: 8561395
- Dimensions: 30x30x10
- Ratings: UL Type NEMA 4, 4X, 12, 12K and 13: IP66; IP67;; IK09;
Product
- Description: Hinged opaque enclosure with stainless-steel latch
- Remarks: PC Enclosure, Hinged opaque screw cover w/S.S. latch
- Package: 1
- Unit: Piece
Dimensions
- Height (inch): 30
- Width (inch): 30
- Depth (inch): 10
- Height (mm): 762
- Width (mm): 762
- Depth (mm): 254
Materials
- Material: Polycarbonate
- Base color: RAL 7035 -light grey
- Cover color: RAL 7035 -light grey
- Gasket material: Polyurethane
Temperatures
- Temperature °F (continuous): -40 … 175
- Temperature °C (continuous): -40 … 80
Ratings
- UL/cUL Type: UL/cUL 4, 4X, 12, 12K and 13
- UL 1741: Compliant
- Ingress Protection (EN 60529): IP66; IP67;
- Impact Resistance (EN 62262): IK09;
- Electrical insulation: Fully insulated
- Halogen free (DIN/VDE 0472, Part 815): Yes
- UV resistance: UL 508
- Flammability Rating: UL94-5VA (f1)
