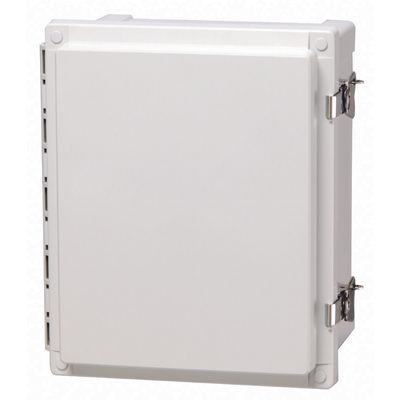

Fibox - Model AR20168CHSSL -Hinged Opaque Enclosure
FromFibox Enclosures
Including: Hinged cover. Base with 10-32 brass inserts, latched cover with formed in place PUR gasket, stainless hinge pin. Quick release latches. Enclosure mounting foot kit. Accessory 10-32 screws for panel mounting. Part #: 8561369. Dimensions: 20 x 16 x 8. Ratings: UL Type NEMA 4, 4X,12, 12K and 13: IP66; IP67;; IK09.
More about this product— External link
Most popular related searches
Product
- Product nr: 8561369
- Description: Hinged opaque enclosure with lockable stainless-steel latch
- Remarks: PC Enclosure, Hinged opaque screw cover w/S.S. Lockable latch
- Package: 1
- Unit: Piece
- ETIM: EC000261 Enclosure/Switchgear cabinet (empty)
Dimensions
- Height (inch): 20
- Width (inch): 16
- Depth (inch): 8
- Height (mm): 508
- Width (mm): 406.4
- Depth (mm): 203.2
Materials
- Material: Polycarbonate
- Base color: RAL 7035 -light grey
- Cover color: RAL 7035 -light grey
- Gasket material: Polyurethane
Temperatures
- Temperature °F (continuous): -40 … 175
- Temperature °C (continuous): -40 … 80
Ratings
- UL/cUL Type: UL/cUL 4, 4X,12, 12K and 13
- UL 1741 Compliant
- Ingress Protection (EN 60529): IP66; IP67;
- Impact Resistance (EN 62262): IK09;
- Electrical insulation: Fully insulated
- Halogen free (DIN/VDE 0472, Part 815): Yes
- UV resistance: UL 508
- Flammability Rating: UL94-5VA (f1)
- Glow Wire Test (IEC 60695): 960 °C
