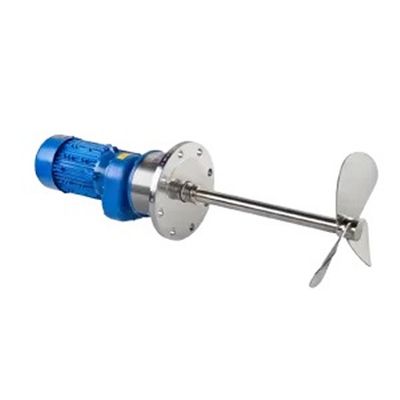

FlowMIM - Model LECOR LMRE -Horizontal Agitator
The LECOR LMRE horizontal agitator is suitable for the maintenance and mixing of products stored in medium and large volume tanks . These equipment are installed in the lower part of the tank with an angle of inclination and a distance to the bottom determined based on the shape and dimensions of the tank.
The LMRE models have two shaft sealing systems . On the inside, where the shaft is in contact with the product, a mechanical seal is installed, and on the outside they can incorporate a safety packing.
The design and selection of the type of propeller is carried out based on the type of product, the agitation requirements, the geometry of the tank and the position of the agitator with the aim of obtaining maximum performance with minimum operating cost.
- Shaft and propeller made of AISI 316L stainless steel
- C/C/N mechanical seal
- Control panel
- Safety packing
- S/S/V and/or double mechanical seal
- Shaft and propeller anti-corrosion or wear coatings
- Engine coating
- Other materials
- GAMMA propeller high flow
- Other anchoring systems
- Other shaft lengths
- Anchoring using DIN 2576 flange
- Final finish: Industrial
- High performance helical gear reducer motor
- GAMMA/MARINA type propellers
- Simplicity of parts
