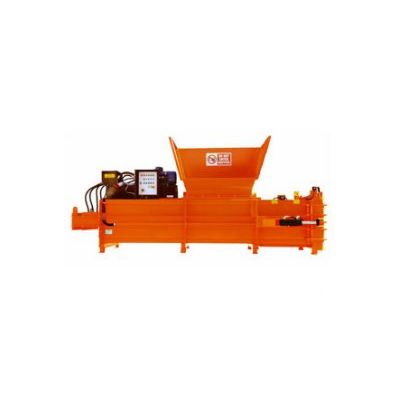

Model CK450H -Horizontal Balers
CK450H has a large feed opening and is ideal for pallet sized cardboard. It produces mill sized bales of cardboard up to 500kg. CK450H has vertical tying and second bale eject. There are various options available to improve the specification, such as 11kw and 15kw powerpacks to increase through put, conveyor feed hoppers and a binlift
- HxWxL (mm): 750x1150x1200
- Bale Weight (kg): Up to 500 (cardboard)
Bale size and weight depends on material baled and operator
- H*xWxL (mm): 1790x1600x5380
- Hopper: Hand fed, 1.4m wide or Flared 2.2m wide
- Feed opening (mm): 1320×1045
- Weight (approx) (kg): 5500
- Cycle Time (sec): 87 (7.5kW motor), 76 (11kW motor), 42 (15kW motor)
- No of wires: 4, vertical tying
- Compaction force(T): 50
- Power Supply (V): 415 (three phase)
*height to top of powerpack, hopper additional
7.5kW motor, manual door close, range of hoppers, bale full indicator, jammed indicator, cleaning rod and hour counter.
11kW or 15kW motor, oil heater, oil cooler, hydraulic door ram, interlocked access door for hopper, aggressive ram head, retention claws, door damper ram, bale eject counter cog, vandal proof cover for control panel, powerpack cover, extra pressure setting for alternate material, satellite control panel, jam beacon, bale full beacon, bale discharge beacon, binlift.
- Shear blade on top of press plate, allows material to be easily cut after feeding
- Magic eye start-up so operator can continuously feed material
- Automatic cut out when bale is full so operator is informed when bale is ready to be tied
- Semi automatic operation
- Range of hoppers for easy feeding, saving on labour time
- Robust construction for long life
- IP55 rating allows machine to be located outside
- CE marked
