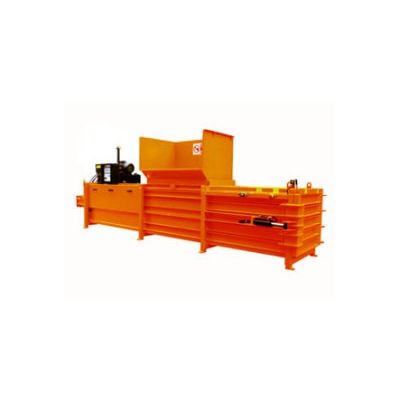

Model CK850H -Horizontal Balers
CK850H has a throughput of over 3 tonnes per hour and can produce a bale in excess of 1 tonne. It has a 60 tonne compaction force and an aggressive ram head providing efficient shearing. The CK850H has a large feed opening allowing easy feeding of bulky material. It also has magic eye start up, automatic cut off when bale is full, horizontal tie and adjustable bale length with 6 different settings. A 22kW motor is available as an option.
- HxWxL* (mm): 1100x1100x1700
- Bale Weight (kg): Up to 1000 (cardboard)
*Bale length variable between 1400-1700mm
Bale size & weight depends on material baled and operator
- H*xWxL (mm): 2070x1750x7590
- Hopper: Flared, 3m wide
- Feed opening (mm): 1835×1045
- Weight (approx) (kg): 7000
- Cycle Time (sec): 62 (15kW motor)
- No of wires: 5, horizontal tying
- Compaction force(T): 60
- Power Supply (V): 415 (three phase)
*height to top of powerpack, hopper additional
15 kW motor, hydraulic door ram, 3m wide flared hopper, bale full indicator, jammed indicator, aggressive ram head, 5 wire tying and hour counter.
22 kW motor, oil heater, oil cooler, interlocked access door for hopper, retention claws, door damper ram, bale eject counter cog, vandal proof cover for control panel, powerpack cover, extra pressure setting for alternate material, satellite control panel, jam beacon, bale full beacon, bale discharge beacon, binlift.
- Shear blade on top of press plate, allows continuous material feeding
- 15kW motor for shorter cycle time
- Magic eye start-up so operator can continuously feed material
- Automatic cut out when bale is full so operator is informed when bale is ready to be tied
- Variable bale length so bale size can be adjusted to maximise the material in a container
- Semi automatic operation
- 3m wide hopper for easy feeding with loading shovel
- Large bale saves time tying bale, reduces the amount of wire used and saves time loading containers
- Robust construction for long life
- IP55 rating allows machine to be located outside
- CE marked
