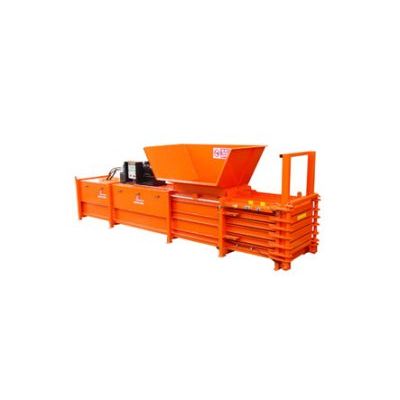

Model CK850HFE-PC -Horizontal Balers
CK850HFE-PC has a throughput of over 3 tonnes per hour and can produce a bale of cardboard up to 800kg. It is a full eject baler with a portcullis door for easier operation. It has a very large hopper opening which allows easier feeding of large volumes of waste with a loading shovel. Upgrade to a 22kW motor is available to allow faster cycle time.
- HxWxL* (mm): 1100x1100x1500
- Bale Weight (kg): Up to 800 (cardboard)
*Bale length variable between 1200-1500mm
Bale size & weight depends on material baled and operator
- H*xWxL (mm): 2540x1680x8260
- Hopper: Flared, 2.7m wide
- Feed opening (mm): 1750×1045
- Weight (approx) (kg): 7500
- Cycle Time (sec): 62 (15kW motor)
- No of wires: 5, horizontal tying
- Compaction force(T): 52
- Power Supply (V): 415 (three phase)
*height to top of door guide
15 kW motor, 2.7m wide flared hopper, bale full indicator, jammed indicator, aggressive ram head, 5 wire tying, hour counter and twin ram portcullis door.
22 kW motor, oil heater, oil cooler, interlocked access door for hopper, retention claws, vandal proof cover for control panel, powerpack cover, extra pressure setting for alternate material, satellite control panel, jam beacon, bale full beacon, binlift.
- Shear blade on top of press plate, allows continuous material feeding
- 15kW motor for shorter cycle time
- Full bale eject for fast bale discharge
- Magic eye start-up so operator can continuously feed material
- Automatic cut out when bale is full so operator is informed when bale is ready to be tied
- Variable bale length so bale size can be adjusted to maximise the material in a container
- Semi automatic operation
- 2.7m wide hopper for easy feeding with loading shovel
- Large bale saves time tying bale, reduces the amount of wire used and saves time loading containers
- Generous hopper size allows easier feeding of large volumes of waste with loading shovel
- Robust construction for long life
- IP55 rating allows machine to be located outside
- CE marked
