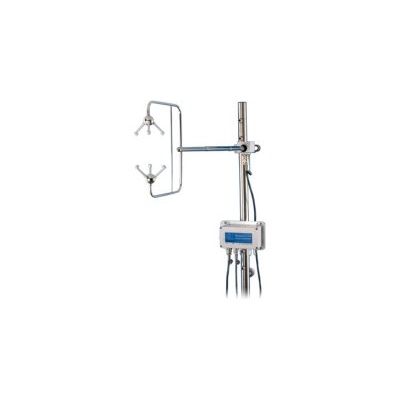

Model HS-100 -Horizontal-Head Ultrasonic Anemometer
The HS-100 3-axis anemometer features a horizontal head design, which allows for accurate measurement of vertical flows with minimum flow interruption from the anemometer geometry.Ideal for scientific research applications, HS-100 is capable of monitoring wind speeds of 0-45m/s and offers a fast update rate of 100Hz for precision wind analysis.The head of the anemometer features a built-in inclinometer to allow the instrument to be accurately positioned on a tower or mast. Access to the PRT and analogue inputs is provided via a separate electronic enclosure. The instrument is ideal for analysis of surface turbulence and can be positioned close to the ground or crop and tree canopies.
The HS-100 features a robust stainless-steel construction, which is suitable for use in most extreme weather enviornments.
A 50Hz version of this instrument is available, click HS-50 to view.
- 3-axis sonic anemometer providing wind speed and direction data
- Horizontal head design for highly accurate vertical flows
- 100Hz Data Output Rate
- 0-45m/s wind speed
- 0-359º wind direction range (no dead band)
- Custom Calibrated
- Optional Analogue Outputs
- Speed of sound and sonic temperature outputs
- Analogue Inputs & PRT Input
- Inclinometer Included
- Robust stainless steel construction
