Liqua Flow Pump Company

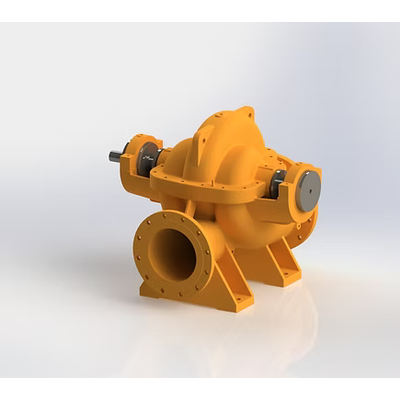

Liqua Flow - Model HSC Series -Horizontal Split Case Pump
Designed to perform in a wide range of process applications from cooling towers to transfer stations, Liqua Flow HSC series double-suction Horizontal Split Case pumps are balanced axially and radially to ensure long life with minimal maintenance.
Most popular related searches
horizontal split case pump
horizontal split case
split case pump
split case
double suction split case pump
water supply
cooling tower
epoxy coating
raw water
wash water
- Capacities up to 10,000 GPM
- Heads up to 635 feet (275 PSI)
- Temperatures up to 185°F (85°C)
- Available in LH or RH configurations
- Sizes range from 4 in. to 24 in.
- Grade 304 Stainless Steel impellers
- Standard UV Resistant Epoxy Coatings
- NSF61 Compliant Coatings available
- Heavy duty steel baseplates fabricated in-house for easy customizations
- Quench water
- Circulation
- Cooling towers
- Booster stations
- Mill water supply
- Fan pump
- Cooling water
- High lift
- Low lift
- Raw water
- Wash water supply
- Waste water
- Backwash
- Filter backwash
- Component cooling
- Bilge and ballast
- Dynamically Balanced Rotating Assembly ensures smooth, quiet, efficient pumping and extends equipment life.
- 4140 Steel Shaft provides superior strength and corrosion resistance with minimal shaft deflection.
- UV Resistant Epoxy External Coatings outlast industrial enamels to mitigate rust and corrosion.
- NSF/ANSI 61 Compliant and various other internal coatings available.
- Heavy Duty Base Plate safely secures equipment against external forces while minimizing vibration and sound. (Custom fabrication available upon request)
