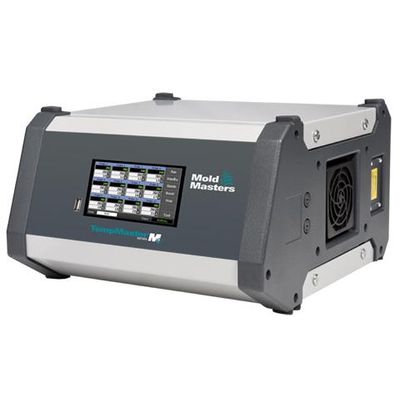

Model TempMaster ME -Hot Runner Temperature Controller

SHARE
The TempMaster-ME controller platform incorporates fundamental functions with sophisticated APS Technology to achieve precise hot runner temperature control. It delivers robust performance from a compact unit, aiding in the enhancement of part quality and reduction of scrap. This platform optimizes the functionality of any hot runner system, enabling operational efficiency. Key features include an intuitive color touch screen display, 15-Amp integrated control cards, a compact and stackable cabinet design, and a comprehensive two-year warranty. For detailed specifications, users should consult the product marketing literature available in the 'Downloads' section. The TempMaster ME is suitable for diverse applications, ranging from automotive and large white goods to packaging, personal care, and consumer goods.
Most popular related searches
digital temperature controller
process control system
thermocouple

The TempMaster-ME controller platform combines essential features with advanced APS Technology for precision hot runner temperature control. Powerful performance from a compact unit that helps improve part quality and minimize scrap. Optimize the performance of any hot runner system and unlock your operation's full potential with TempMaster.

Intuitive Touch Screen Color Display

  • Simple, user-friendly interface.
  • Allows for immediate familiarization.
  • Monitor up to 12 zones at once.

Integrated 15-Amp Control Cards

  • Power to control a wide range of hot runner zones from nozzle tips to larger manifolds.
  • On-board heater fuses.
  • Quick and easy service access from the cabinet top and bottom.

Compact, Stackable Cabinet Design

  • Preserves valuable space.
  • Can be placed almost anywhere.
  • Available in 6 or 12 zone configurations.
  • Lightweight.

2 Year Comprehensive Warranty

  • Worry-free global support coverage.
  • Protects against manufacturer defects (fuses excluded).
  • Temperature Control Zones (Max): 12 @ 15A
  • User Interface: Full Color LCD Touch Screen
  • Display Size: 5" (127mm)
  • Control Algorithm: APS (Adaptive Process System)
  • Power Control: Phase Angle Burst Firing Modes (Time Proportional, Zero Crossing)
  • Temperature Display Resolution: 1° (C or F)
  • Power Response Time: 8.3ms at 60 Hz
  • Temperature Scale: °C or °F (Software Selectable)
  • Thermocouple: J or K-Type (Software Selectable)
  • Output Voltage (Max): 264 VAC
  • Supply Voltage: 200/240 Delta or 380/440V 3Ø Star
  • Languages: English, French, German, Spanish, Polish, Russian, Chinese, Japanese, Czech, Italian, Hungarian, Turkish, Portuguese, Korean.

*For more complete specifications, please refer to the product marketing literature in the “Downloads” section.

Includes

  • 4.8m (15') Cable Set
  • Quick Start Guide

Options

  • Various Industry Standard Mold Plugs
