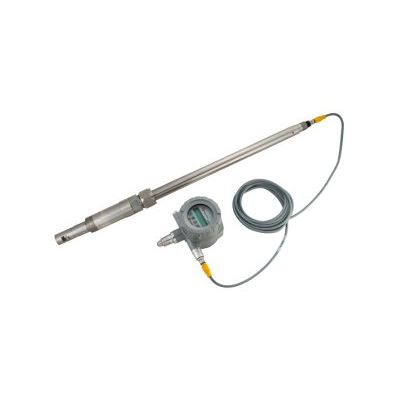

Model VN2000 -Hot Tap Insertion Vortex Flow Meter
The VN2000 Hot Tap Insertion Vortex Flow Meter measures the volumetric or mass flow rate of steam, gases or liquids over a large flow range. The meter is a heavy duty design engineered to stand up to the most abusive environments inside and outside the pipe. A removable insertion/extraction tool aids in installation or removal in high pressure applications.
Benefits
- Reliable measurement for steam and a variety of fluids
- Reduce replacement inventory
- Reduce maintenance cost
- Reduce spare parts
Features
- Measure volumetric flow, mass flow with temperature compensation or BTU/energy
- Durable stainless steel design
- No moving parts to wear
- Integrated RTD for mass flow or BTU/energy eliminates a hot tap
- Seal-free sensing element eliminates leak paths to electronic sensors
- Single meter for multiple pipe sizes
- Dual sensor technology reduces noise interference
- No zero drift
- Self-cleaning sensing element
Vortex VN2000 Sizing Software
VN2000 Line Sizes Spreadsheet
Size 2...48 in.
Temperature Range -250...400 °F
Flow Range 13…156,700 gpm, 17…11,783,600 scfm, 55…23,292,724 lb/hr
Pressure Range Up to 1000 PSI
Accuracy +/- 1 %
Additional Specifications
Application Examples Saturated steam for heating, Deionized water, Compressed air, Wet or dirty gases
Industries Building Automation / HVAC, Water & Wastewater Treatment
