Highest convenience
- intuitive and very easy to use control elements
- illuminated digital display for easy setting
- easy to clean full ceramic plate
Highest user safety
- hot top indicator for temperatures over 50°C
- high quality insulation to protect user and device against heat damage
- two independent internal sensors for accurate temperature and overheating protection
Ideal for:
- sample drying and general lab heating applications where high temperature is needed
Features:
- digital display with backlight
- new deisgn: lighter and more compact then the previous model
- high-quality solid ceramic plate 200x200 mm, up to 500°C
- heat-, chemical- and acid-resistant
- perfect heat uniformity from the inner to the edge
- no liquid can get into the body
- powder-coated aluminium body
- CE certified and unique serial number for tracing
Safety mechanism:
- hot top indicator lamp
- timer 99h 59min with timer-end signal
- ideal fourfold insulation: BTU, ceramic paper and 2 x SUS
- error status and locking mode
- operation LEDs
Controller:
- new Jog-Dial controller with touch-button for precise temperaturecontrol

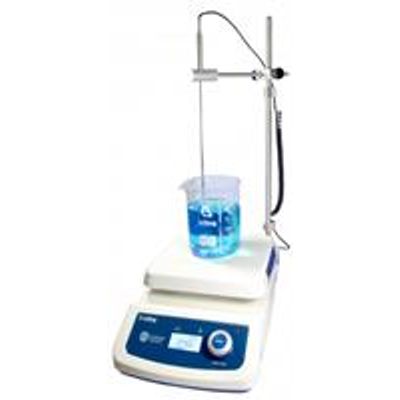

Unit: Hotplate HP-500 unit, power cable, instruction manual
Set: Hotplate HP-500, temperature probe, stand rod, holder / clamp / clip, power cable, instruction manual
Features
Protection: Two features protect the device from internal corrosion and prolong its life time: the closed coverage type and the intelligent fluid management system, which leads off accidentally spilled liquids away from the interior of the device.
Surface: The superior full ceramic plate achieves up to 500°C, is resistant against aggressive chemicals and easy to clean.
Housing: The die-cast case with high-quality insulation ensures user safety during operation at high temperatures. The minimized heat transfer from the plate to the inside also ensures a longer life time.
Temperature control & safety:Two independent internal temperature sensors assure accurate temperature control and prevent from malfunction or danger caused by overheating.
Accessories: The external temperature sensor allows accurate temperature due to digital feed-back control system.
Safety first: Hot top indicator lamp illuminates when temperature on the plate is over 50°C.
Controller: New Jog-Dial “Turn + Push” and touch button are designed for intuitive, easy and direct use.
- Version Unit
- Width (Outer) 220 mm
- Height (outer) 114 mm
- Length (outer) 332 mm
- Version with filter rectangular
- Controller Digital Housing material
- Powder-coated aluminium
- Weight 3,8 kg
- Heating power 850 W
- Plate size 200 x 200 mm
- Plate material Solid ceramic plate
- Temperature control resolution Display 0.1°C, control 0.5°C
- Temperature range with filter 500°C
- Temperature accuracy ±0.3°C
