Model BTI LFF -HPLC Solvents
The HPLC Solvents Breakthrough Indicator is qualitative (yes/no) colorimetric indicator of the end-of-service life of low-flow filters. It is designed to provide real-time indication of the saturation and breakthrough of hplc solvents. HPLC solvents include Acetone, Acetonitrile, Chloroform, Ethanol, Ethyl acetate, Methanol, Methylene chloride and Tetrahydrofuran (THF).
How the Breakthrough Indicators Works?
When filter is exhausted and saturated, toxic gases and vapors breakthrough the filter and chemically react with the indicating sensor inside the breakthrough indicator producing vivid color change alerting user to change filter. These saturation and breakthrough indicators are most suited for waste container filters used in hplc and dry cleaning applications. It can also be used in any application where a filter is connected to low flow waste container.
Product Specifications
a Weight: 3.8g (0.14oz)
b Dimensions: 79mm (3.1in), diameter: 10mm (0.39in)
c Operating temperature: 4oC to 40oC (39oF to 104oF)
d Operating humidity: 5% RH to 85%RH
e Minimum detectable limit: See attached document

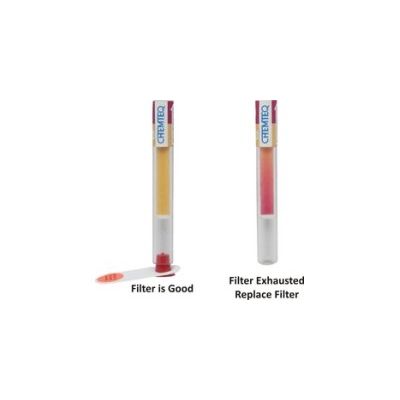

f Color change: Light orange to red
g Storage temperature: 4oC to 25oC, (39oF to 77oF)
h Shelf life: 14 months at 4oC to 25oC, (39oF to 77oF)
i Service life: 12 months
j Maximum shipping temperature: 45oC (113oF)
