Conjet - Model 557 MPA XL -Hydrodemolition Robot

SHARE

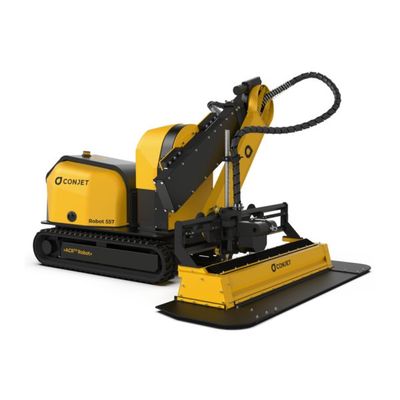

The track-driven hydrodemolition concrete removal Robot 557 MPA XL is equipped with a multi-purpose arm allowing full flexibility. Together with an adjustable chassis, the robot is a versatile and compact solution with extended reach and stability. Stability is key to secure full safety when operating an ACR™ robot. That is why the Robot 557 MPA XL has been designed with the ability to extend the tracks, as well as sliding the main body – both to shift the robot’s center of gravity. An automatic Stability Control System is incorporated into all 557 MPA XL-robots. The SCS monitors the position of the feed beam and notifies the operator in case of a warning.

Most popular related searches
  • Fully automated via the Conjet ONE control system
  • Up to 6,3 m vertical reach
  • Main body can slide back up to 400 mm for increased stability
  • Tool-kits available ensures multi­purpose use
  • Diesel or electric power
  • Easy access to the engine and hydraulics for daily maintenance
  • Automatic Stability Control system
  • Hydrodemolition applied
  • Prepared for Conjet Connect

  • Weight : 2 840 kg (6 261lb)
  • Length : 3 560 (11ft 8in)
  • Width extended track : 1 200 – 1 900 mm (3ft 11in /6ft 3in)
  • Cutting height overhead : 5 900 mm (19ft 4in)
  • Cutting height – vertical : 6 350 mm (20ft 10in)
  • Cutting reach – horizontal : 4 900mm (16ft 1in)
  • Cutting below track level : 3 050mm (10ft 1in)
  • Cutting width : 2 100 mm (6ft 11in)
  • Maximum reaction force : 3 000 N
  • Power supply : Diesel engine, 18,7 kW Electric, 3×380–
  • 480VAC, 32A or 3x200VAC, 63A / 50–60Hz
