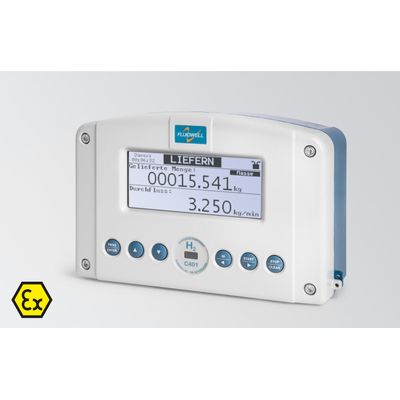

Fluidwell - Model C401 -Hydrogen Batch Dispenser

FromFluidwell bv

SHARE

The design of the C401 hydrogen batch controller is a logical next step, based on our successful product lines for harsh surroundings and explosive atmospheres. The C-series is designed with a focus on high-quality and reliability for use in metrological / custody transfer applications. The C401 is a Hydrogen dispenser in conjunction with Coriolis mass flow meters. Ruggedness and reliability is what Fluidwell stands for and it is now available in a comprehensive well designed and purpose driven Zone 2 flow computer, approved by PTB (Germany).

Most popular related searches

Coriolis mass flow meter

mass flow metering

mass flow meter

Coriolis flow meter

Coriolis mass meter

explosive atmosphere

Robust aluminum IP66 / IP67 field enclosure suitable for outdoor truck mounting.
Straight forward operation and automated control of the Coriolis mass flow meter.
All info at a glance, with the large backlit graphical LCD suitable for extreme outdoor use.

Metrology approved system by PTB, according to MID MI002 / OIML R137.
Zone 2 ATEX certification according to: EX II 3 G Ex ec IIC T4 Gc.
Displays current volumetric and mass flow rate, deliverd total, time/date, status indication, engineering and time units.
Low flow rate and cut-off limit alarms with adjustable hysteresis.
Application driven design for truck dispense of Hydrogen (GH2+).
Dedicated communication port for Coriolis mass flow meter.
Communication port for data transfer to industrial Open Platform Communications (OPC).
Communication port for direct ticket printing.
Full integration and control of the Coriolis mass flow meter.
Extensive logging of process data, events and error handling.
Large graphical user interface with large digits.
Bright backlight for good readability during day and night.
Multiple languages supported.
Ambient temperature: -25°C to +55°C (-13°F to 133°F).
For further details or new opportunities, please contact us: +31 413 343786 or click here.

Hydrogen distribution on board of trucks or marine bunkering. For accurately register metrologically the dispensed amount of Hydrogen.
For loading and unloading Hydrogen trucks, trains and other carriers.
The (re)calibration of Hydrogen Refilling Station (HRS).

Signal Inputs
- Flowmeter Inputs
  - Coriolis Mass Flowmeter Input:
    RS485: Modbus ASCII / RTU

Signal Outputs
- Pulse outputs
  - None.
- Alarm outputs
  - None.
- Analog outputs
  - None.
- Control outputs
  - None.

Supply
- Power Supply
  - 16 – 27V DC.

Hazardous Area
- Non-Sparking, Zone 2
  - ATEX:
    Gas: II 3 G Ex ec IIC T4 Gc

Communication
- Port 2:
  Function: All Metrologically relevant data.
  Protocol: FTL.
  Interface: RS232 / RS485 2-wire or 4-wire.
- Port 3:
  Function: Metrologically Print receipt.
  Protocol: ASCII.
  Interface: RS232.
