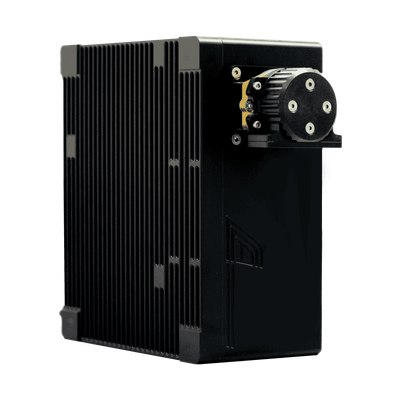

LLA Instrument - Model KUSTA -Hyperspectral Imaging Camera for Optical Sorting
Hyperspectral imaging camera for optical sorting, materials analysis and detection. Real-time imaging analysis. The push-broom KUSTA hyperspectral imaging cameras analyse materials based on composition in the spectral range (NIR/SWIR) and/or in colour (VIS). The results are available in near real-time, making these cameras ideal for use in sorting or for monitoring material flows. The combination of high-resolution, distortion-free imaging and a high measurement repetition rate is ideal for sophisticated materials analysis – even at high speeds and high material throughput.
Our hyperspectral cameras are designed specifically for use in harsh industrial environments. They can be used with our own software package systems via a Gigabit Ethernet connection and can also be integrated into Machine Vision / AI via an optional GenICam interface. Our hyperspectral camera systems are typically used as a complete system solution.
- High resolution 2D-spectrograph with distortion free VIS/NIR/SWIR spectrum
- Camera with TE-cooled InGaAs or silicon sensor array
- Frame rate of up to 795 Hz - achieved by purpose designed electronics
- Comprehensive tools for setup and service
- Industrial PC including Windows®10 IoT OS
- Analysis routines for standard sorting applications in recycling included
- KUSTA cameras are delivered with a comprehensive suite of software
- The control software adjusts camera parameters and monitors camera status
- Standardised interfaces for data transfer to external process control device
- Important device parameters are password-protected
- Application routines can be changed, enabling easy adaption to different sorting tasks
- LLA offer software for application development and software for visualisation of material streams in real time
Select from 4 KUSTA camera models according to the required spectral wavelength range for your application:
KUSTA 0.9
VIS/NIR range 0.35 – 0.95 μm
KUSTA 1.7
Standard SWIR range 0.95 – 1.7 μm
KUSTA 1.9
Extended SWIR range 1.32 – 1.9 μm
KUSTA 2.2
Ultra-extended SWIR range 1.62 – 2.19 μm
SWIR/NIR
- Recycling industry: plastics, paper, and textiles
- Refuse-Derived Fuels (RDF)
- Food industry and agriculture
- Rock processing and mining
- Functional coatings
- Pharmaceuticals, medicine, and life sciences
VIS
- Colorimetric colour analysis
- Vegetation analysis based on vegetation indices
- Fluorescence applications
- Biomedical and life sciences applications
- Spectral ranges
- 0.35 – 0.95 µm (KUSTA 0.9)
- 0.95 – 1.7 µm (KUSTA 1.7)
- 1.32 – 1.9 µm (KUSTA 1.9)
- 1.62 – 2.19 µm (KUSTA 2.2)
- Spectral resolution
- 2.3 nm (VIS/NIR)
- < 8 nm (SWIR)
- Number of measuring tracks: 192 – 320
- Framerate
- up to 579 fps (VIS/NIR)
- up to 800 fps (SWIR)
- Protection class: IP67
- Data connection: Gigabit Ethernet
- Width measuring range / conyeyor belt: 0.5 – 2.8 m
