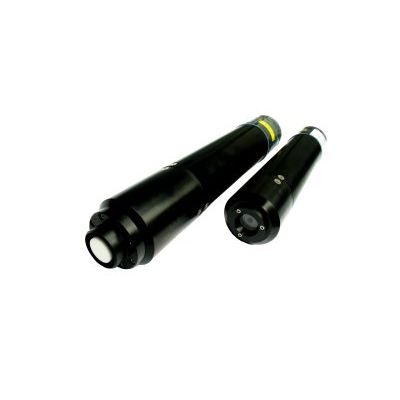

HyperOCR - Hyperspectral Radiometer

Satlantic designed the Hyperspectral ocean colour radiometer (HyperOCR) sensor series for applications where performance, size and power are key constraints. Our hyperspectral radiometers can be mounted on real-time profilers, moored on autonomous deepwater buoys, autonomous underwater vehicles as well as on ships and airplanes for above-water optic applications.

The HyperOCR optical sensors feature enhanced performance specifications such as increased sensitivity and resolution, providing significant advantages for key applications such as above-water and profiling radiometry. The HyperOCR sensors are fully digital optical packages, providing 136 channels of optical data from 350 to 800 nm.

Features:

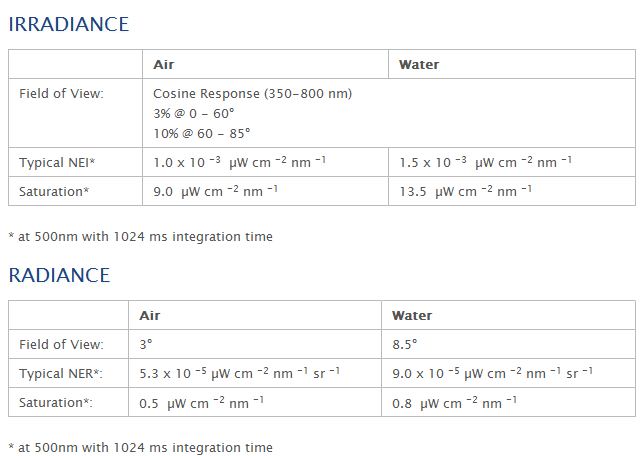

• Irradiance and Radiance radiometers for in-water and in-air applications 350 - 800 nm calibrated range
• Fully characterized cosine response Integrated shutter for accurate dark correction Networking capability
• Data logging and processing software included Fast sampling rate (up to 3 Hz)
• Compatible with the Bioshutter anti-biofouling solution

View Live data from Satlantic Hyperspectral Radiometers:

• BOUSOLE long-term oceanic mooring in the Western Mediterranean sea
• Lucinda Jetty Coastal Observatory, part of Australlia`s Integrated Marine Observing System (IMOS)

Specifications

Optical

• Spectrograph Range: 305 - 1100 nm
• Factory Calibration: 350 – 800 nm
• Spectral Sampling: 3.3 nm/pixel
• Spectral Accuracy: 0.3 nm
• Spectral Resolution: 10 nm
• Stray Light: <1×10 -3
• Detectors: 256 channel silicon photodiode array
• Entrance Slit: 70 x 2500 µm
• Pixel Size: 25 x 2500 µm

Electrical

• Acquisition Module: 16 bit ADC
• Integration Time: 4 - 2048 ms (adaptive gain feature), 1 ms resolution
• Frame Rate: 3 Hz (at 128 ms integration time)
• Data Rate: 9600 – 115200 bps (user selectable)
• Telemetry Interface: RS-422 / RS-232 (isolated)
• Network Interface: Proprietary Satlantic RS-485 SatNet (isolated)
• Power Requirements: 9 – 18 or 18 – 72 VDC ranges (2 Watts nominal)
